1. Holding Fixture Installation




Holding Fixture Installation

Special Tools

J 8763-B - Holding Fixture and Base

For equivalent regional tools, refer to Special Tools Tools and Equipment.

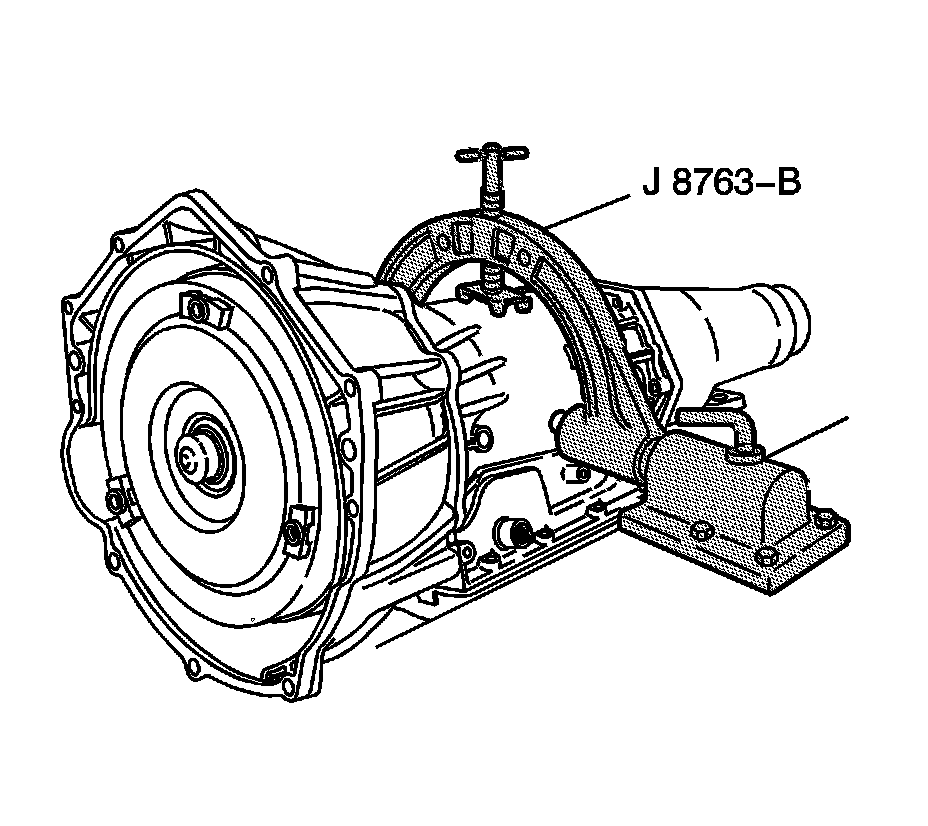

1. Install the J 8763-B - holding fixture and base onto the transmission.
2. Install the J 8763-B - holding fixture and base into the base.
