Rear Suspension

Stabilizer Shaft Insulator Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
2. Support the rear axle at curb height.

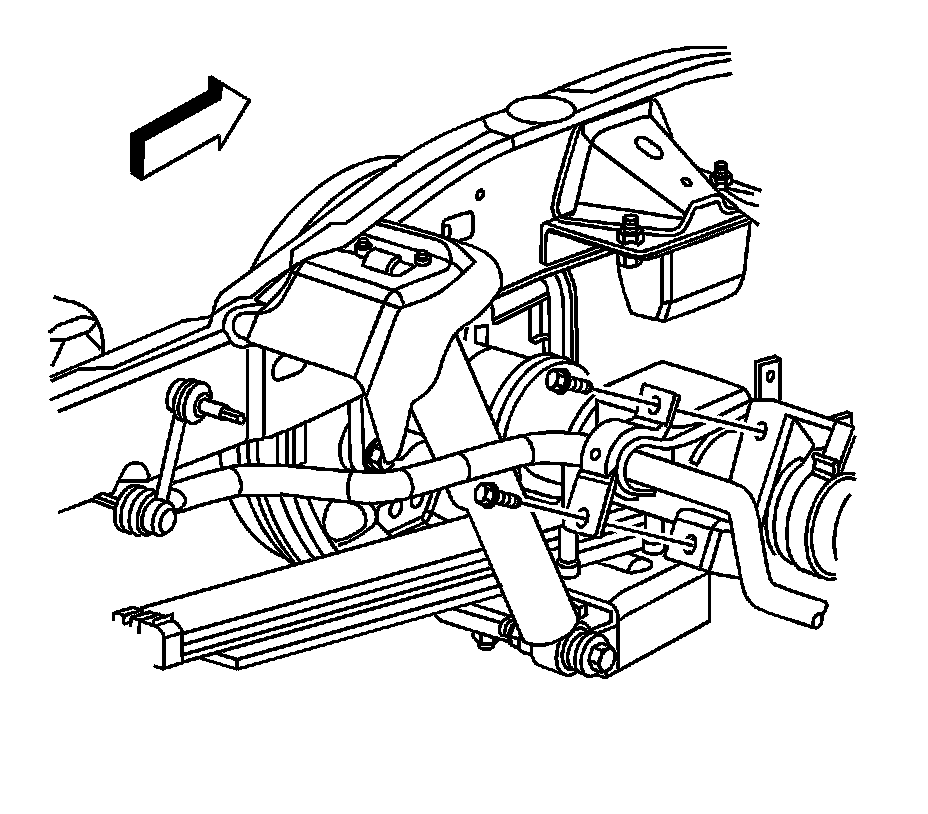

3. Remove the stabilizer shaft insulator bracket mounting bolts.
4. Remove the stabilizer shaft insulator brackets.
5. Remove the stabilizer shaft insulators.

Installation Procedure




1. Install the stabilizer shaft insulators to the stabilizer shaft.
2. Install the stabilizer shaft insulator brackets to the rear axle.

Caution: Refer to Fastener Caution Fastener Caution.

3. Install the stabilizer shaft bracket mounting bolts and tighten to 50 Nm (37 lb ft).
4. Remove the rear axle support.
5. Lower the vehicle.
