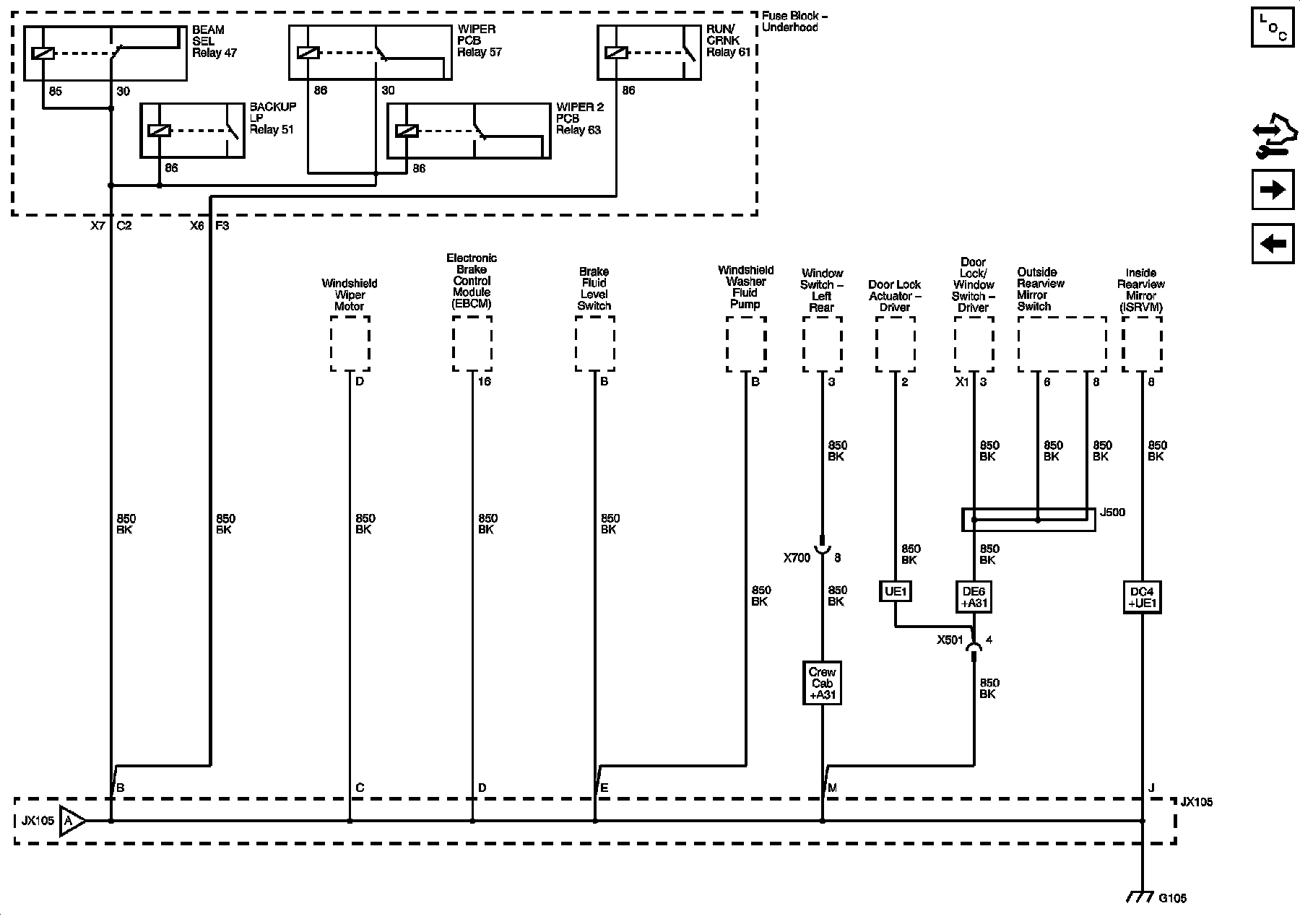

Home >> GMC >> 2012 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Schematics >> G105 (2 of 2)
