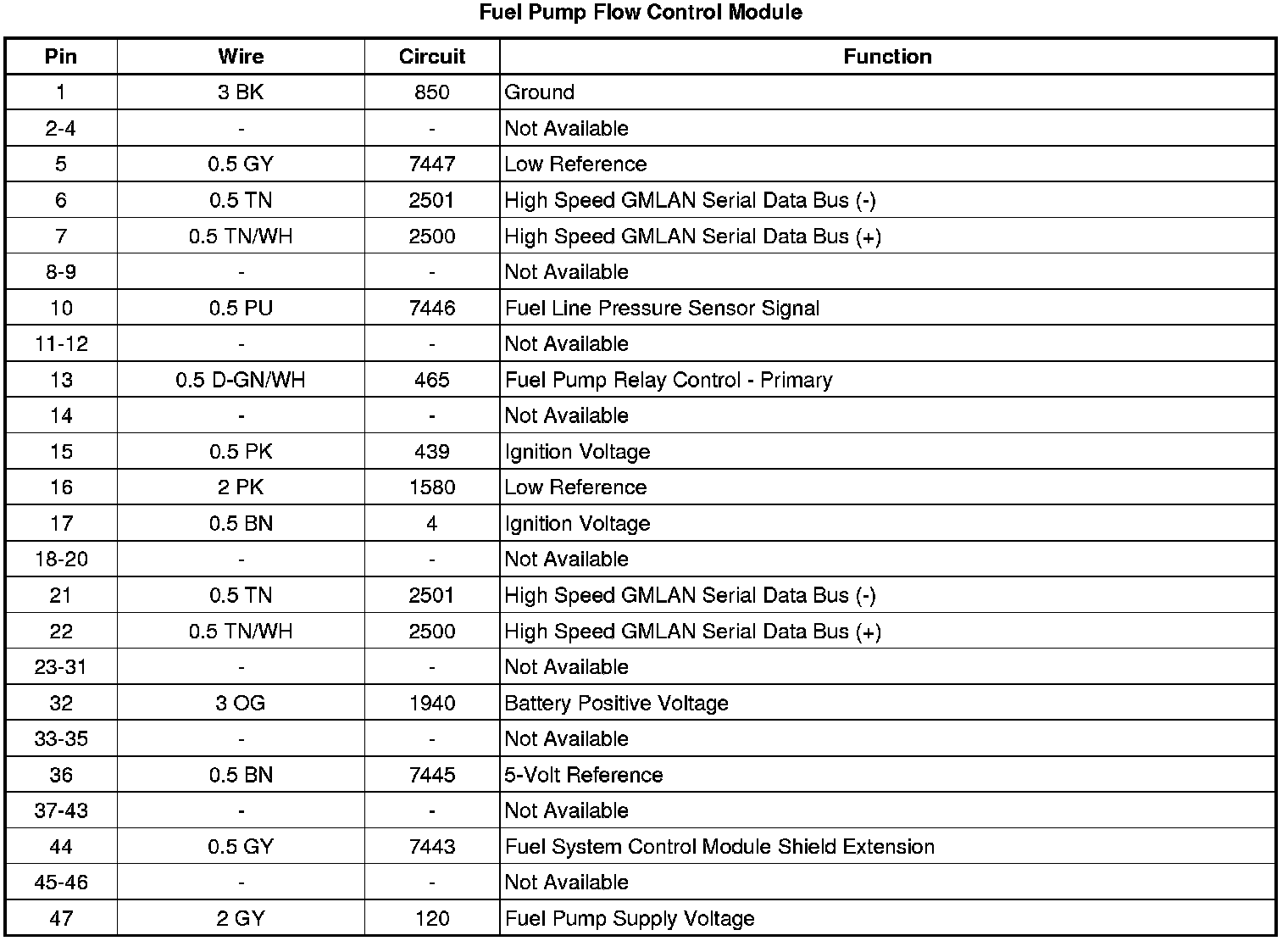

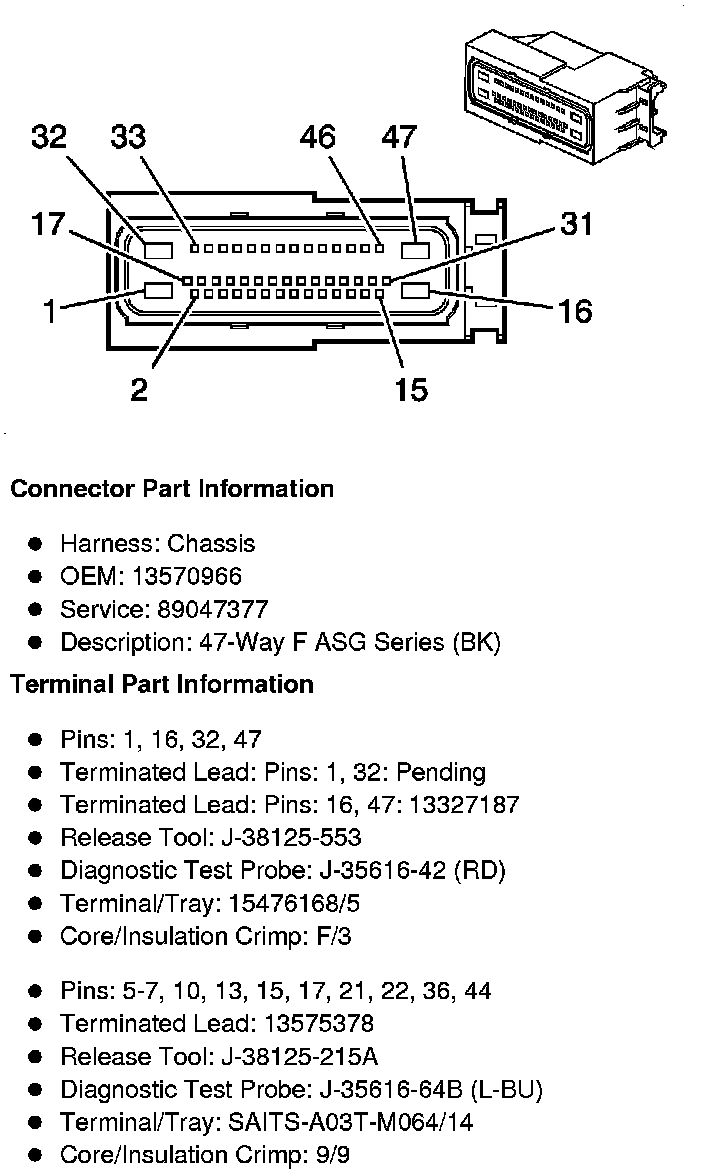

Home >> GMC >> 2012 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Fuel Pump Control Unit >> Diagrams
