Interior Lights Schematics




Interior Lights Schematics

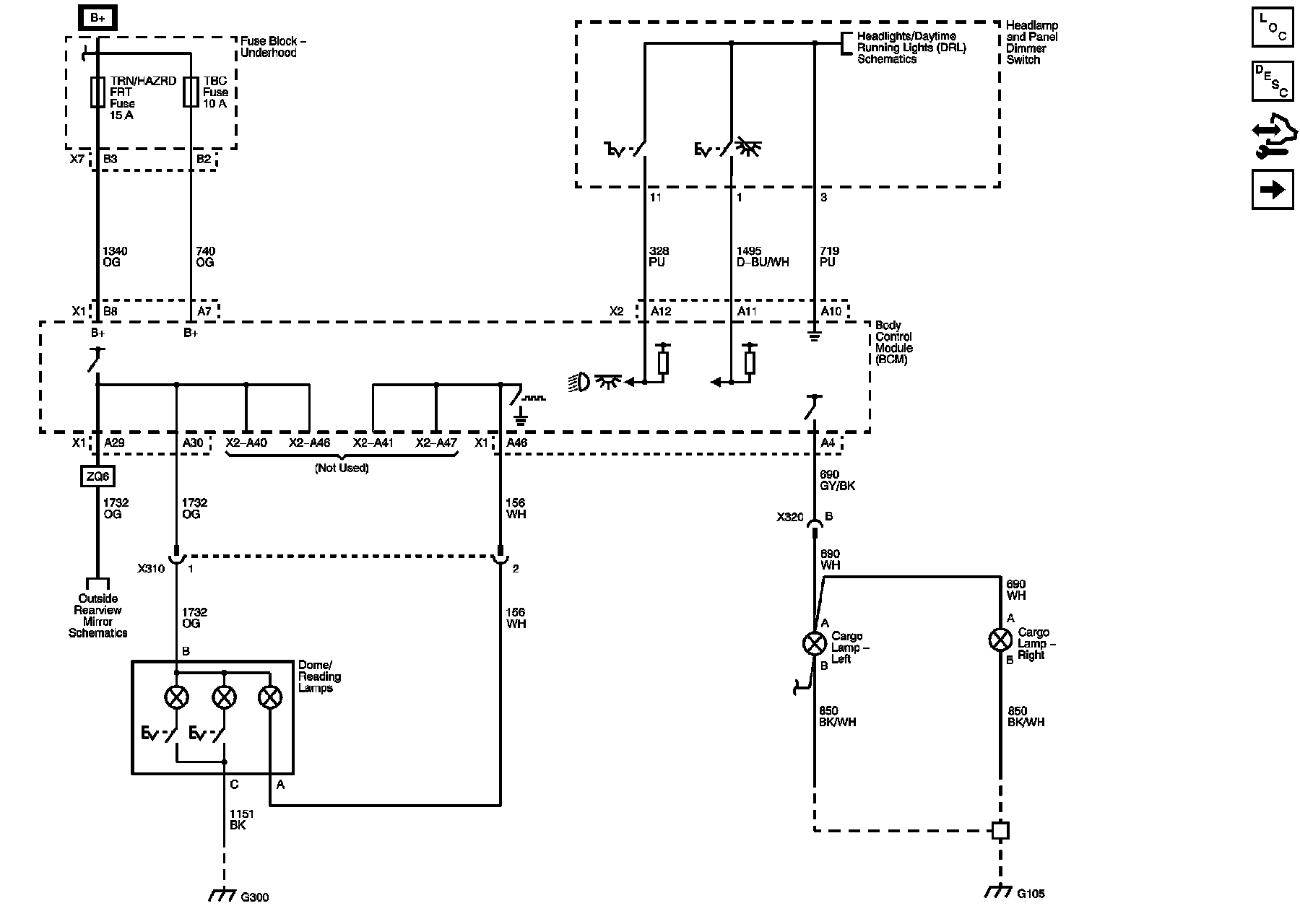

Courtesy Lamps and Inadvertent Power Control





Door Switch Lighting
