Instrument Cluster Lens Replacement

Instrument Cluster Lens Replacement

Removal Procedure

1. Remove the instrument panel cluster (IPC) bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement Instrument Panel Cluster Trim Plate Bezel Replacement.
2. Remove the IPC. Refer to Instrument Cluster Replacement Instrument Cluster Replacement.




3. Remove the screws retaining the IPC lens.

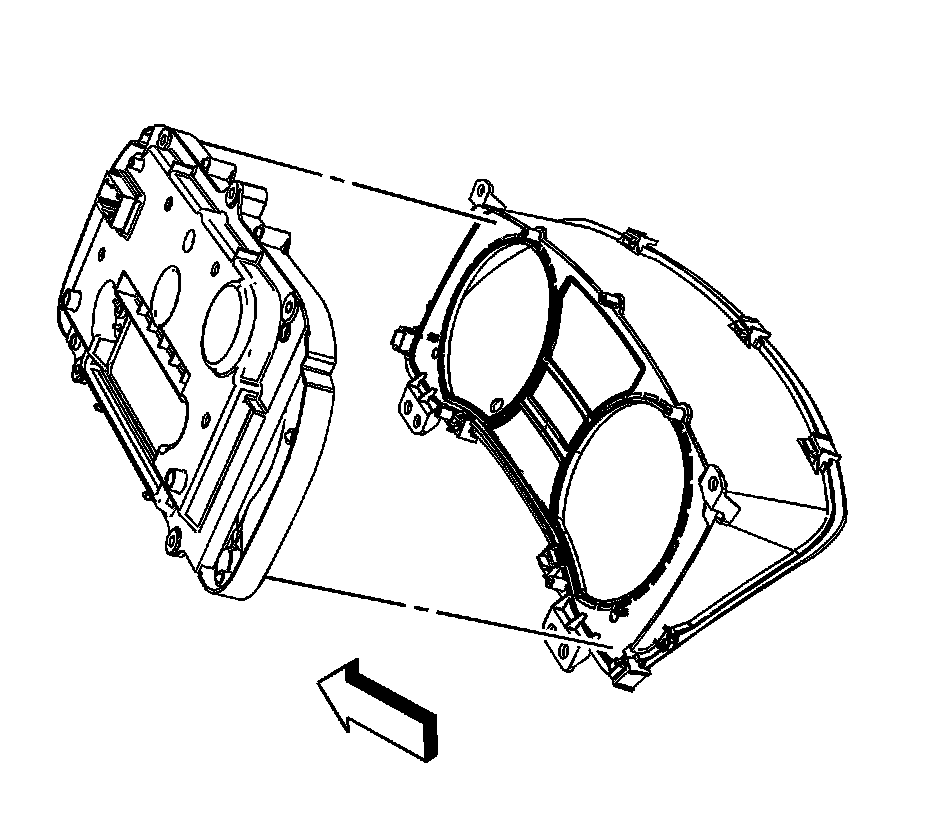

4. Remove the lens from the IPC.

Installation Procedure




1. Install the lens to the IPC.





Caution: Refer to Fastener Caution Fastener Caution.

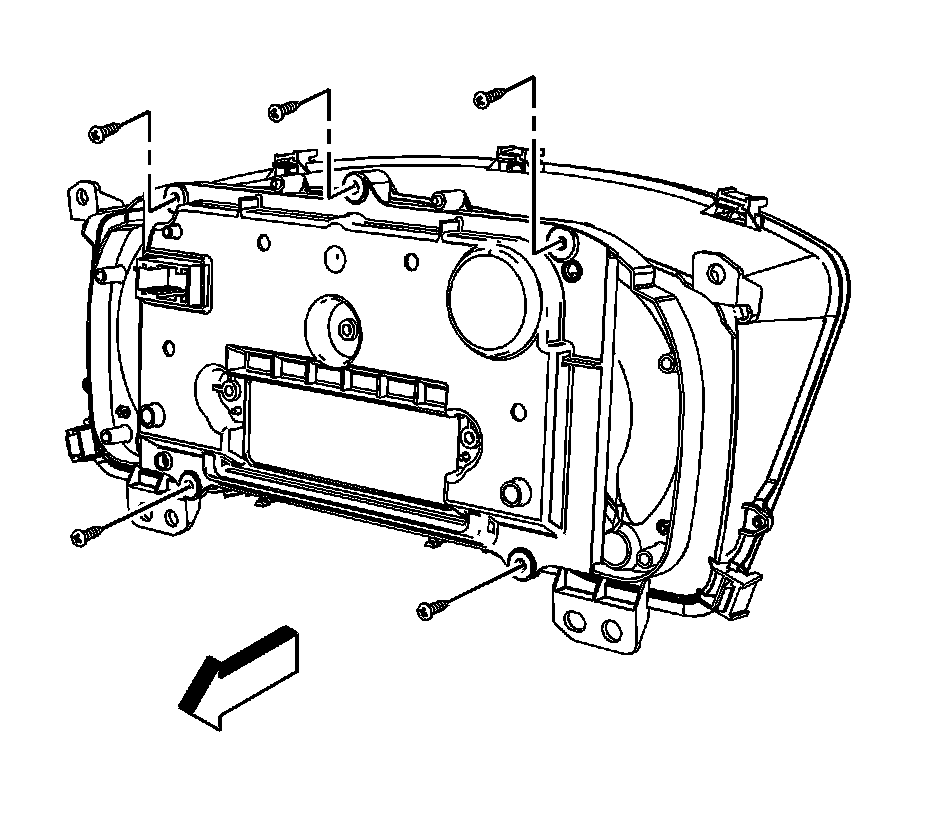

2. Install the screws to the IPC lens.

Tighten the screws to 1.5 Nm (14 lb in).

3. Install the IPC. Refer to Instrument Cluster Replacement Instrument Cluster Replacement.
4. Install the IPC bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement Instrument Panel Cluster Trim Plate Bezel Replacement.
