99. Drive Belt Tensioner Installation

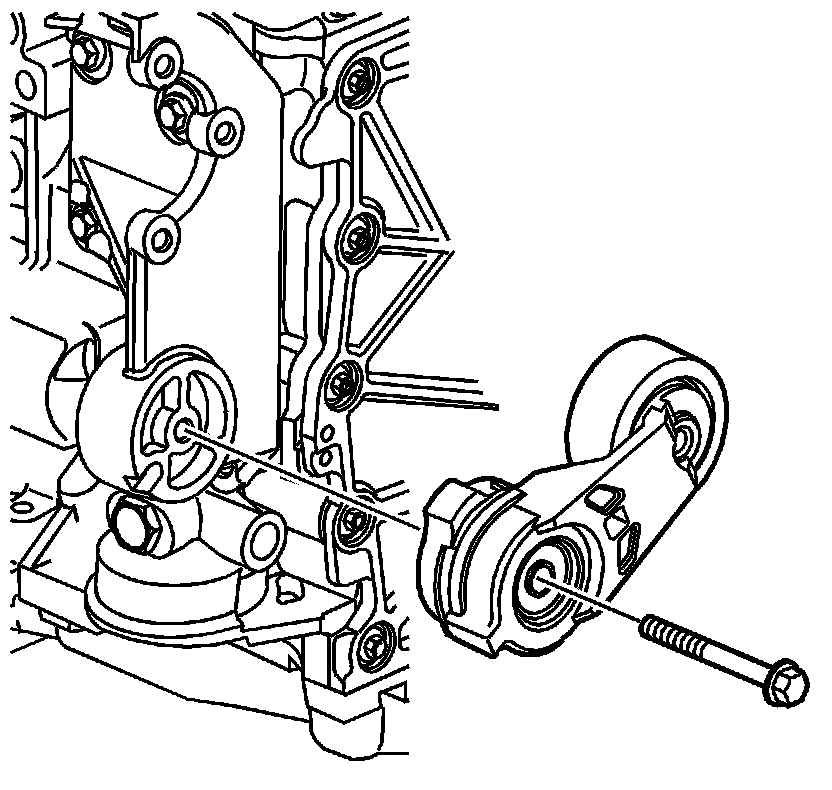

Drive Belt Tensioner Installation




1. Install the drive belt tensioner.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the drive belt tensioner bolt and tighten to 50 Nm (37 lb ft).
