91. Engine Coolant Thermostat Housing Installation

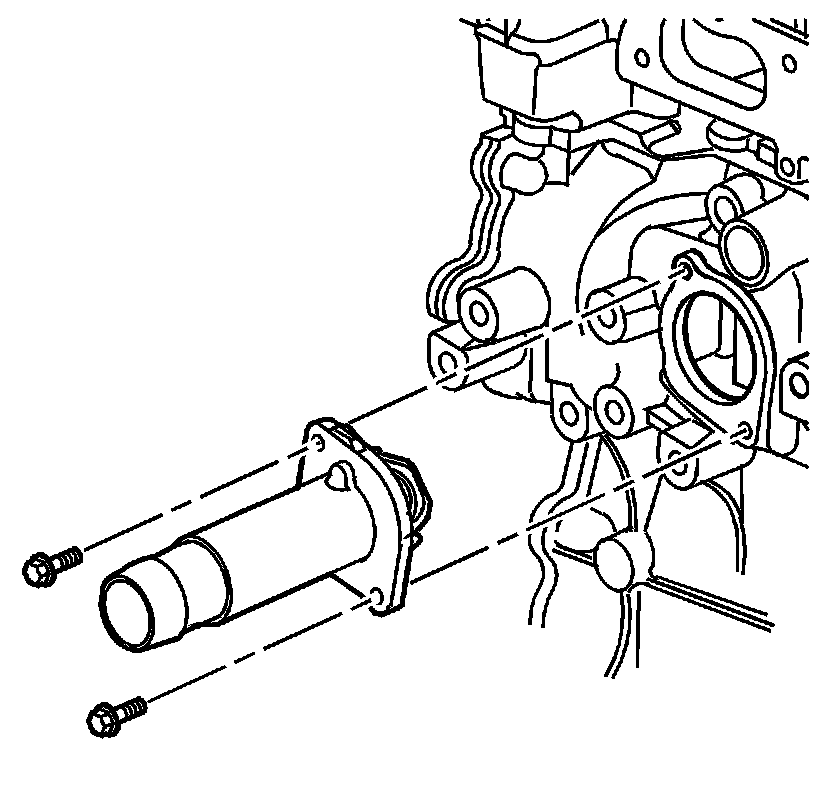

Engine Coolant Thermostat Housing Installation




1. Install the thermostat housing.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the thermostat housing bolts and tighten to 10 Nm (89 lb in).
