88. Crankshaft Balancer Installation




Crankshaft Balancer Installation

Special Tools
* EN-48034 - Crankshaft Balancer Installer
* J 45059 - Angle Meter

For equivalent regional tools, refer to Special Tools Special Tools

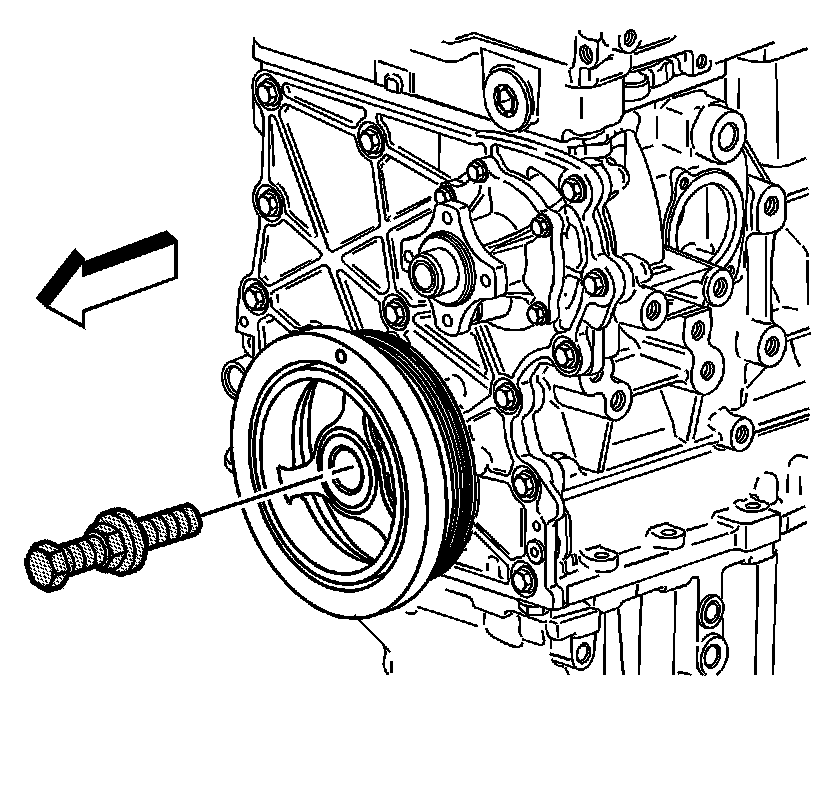

1. Install the crankshaft balancer using EN-48034 - installer.
2. Remove EN-48034 - installer.
3. Hold the flywheel or back of the crankshaft. The crankshaft balancer does not have a keyway so the crankshaft could turn when tightening, causing an improper torque.





Caution: Refer to Fastener Caution Fastener Caution.

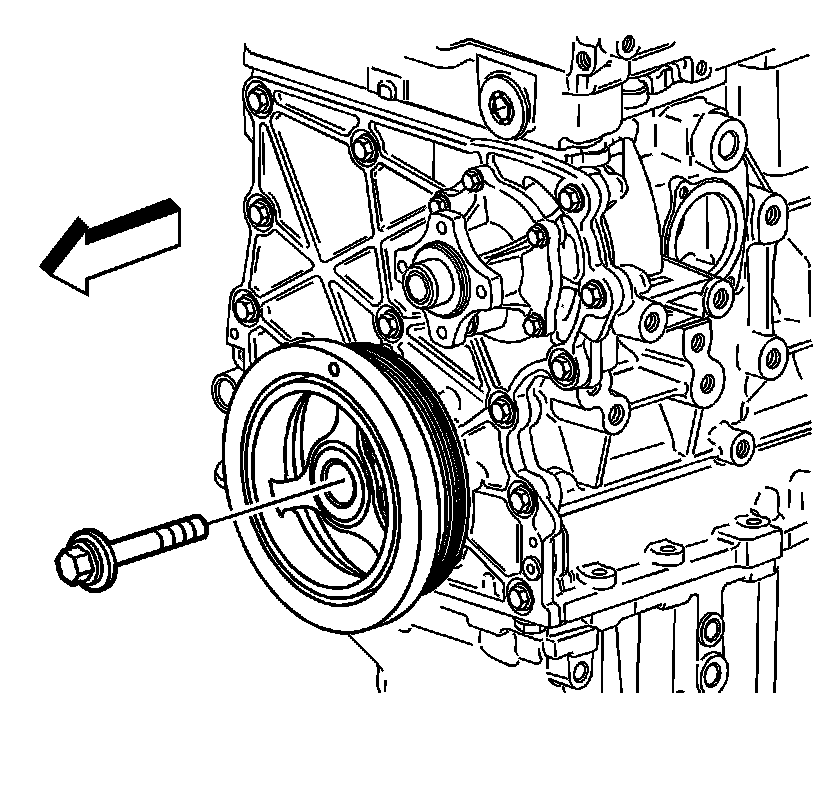

4. Install the crankshaft balancer washer and new bolt.

1. Tighten the new crankshaft balancer bolt while holding the back to 150 Nm (110 lb ft).
2. Use J 45059 - meter to tighten the crankshaft balancer bolt an additional 180 degrees.
