83. Crankshaft Front Oil Seal Installation




Crankshaft Front Oil Seal Installation

Tools Required

J 45951 Front Seal Installer




1. Apply engine oil to the outside diameter of the crankshaft front oil seal.

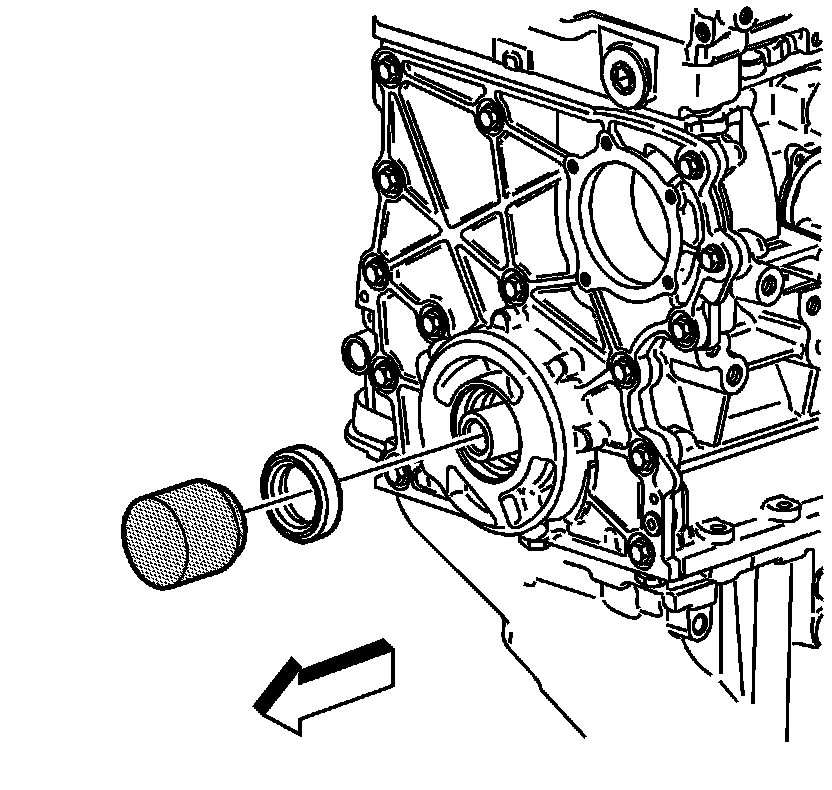

2. Use J 45951 to install a new crankshaft front oil seal.
3. Remove J 45951 .
