81. Oil Pump Installation

Oil Pump Installation




1. Install the oil pump pressure relief valve and spring.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the oil pump pressure relief valve plug and tighten to 14 Nm (124 lb in).

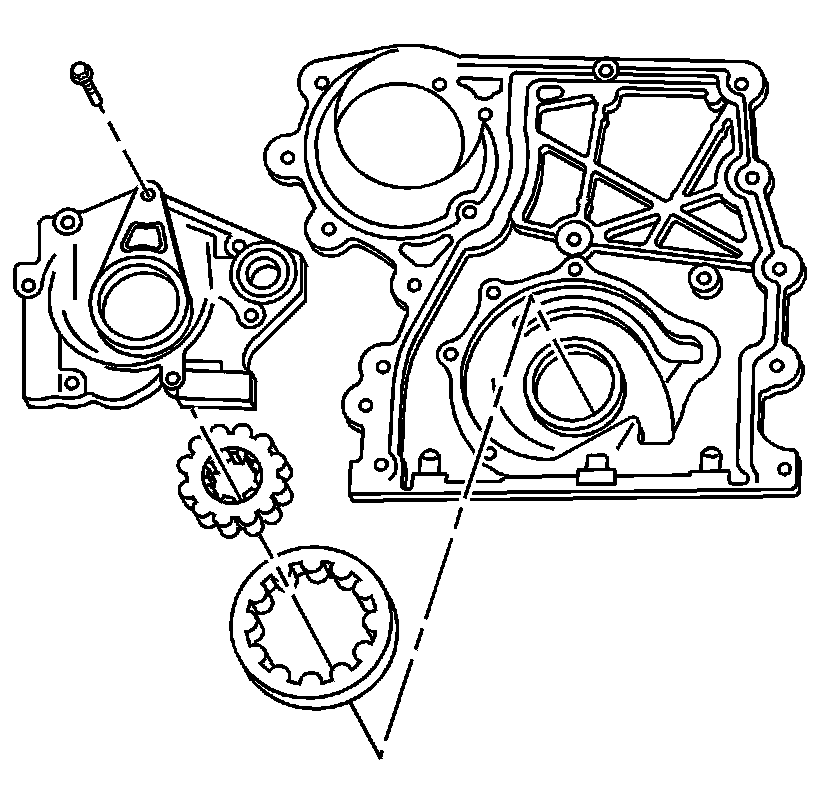

3. Install the oil pump outer and inner gears as removed.
4. Install the oil pump cover.
5. Install the oil pump cover bolts and tighten to 10 Nm (89 lb in).
