77. Timing Chain Tensioner Installation

Timing Chain Tensioner Installation

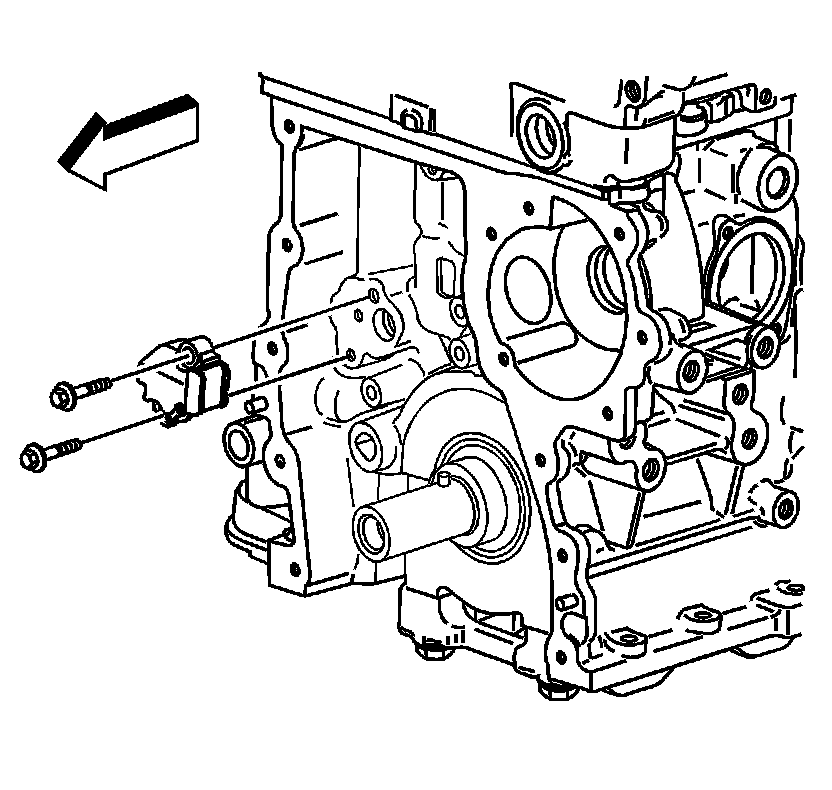

1. Install the timing chain tensioner.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the timing chain tensioner bolts and tighten to 25 Nm (18 lb ft).

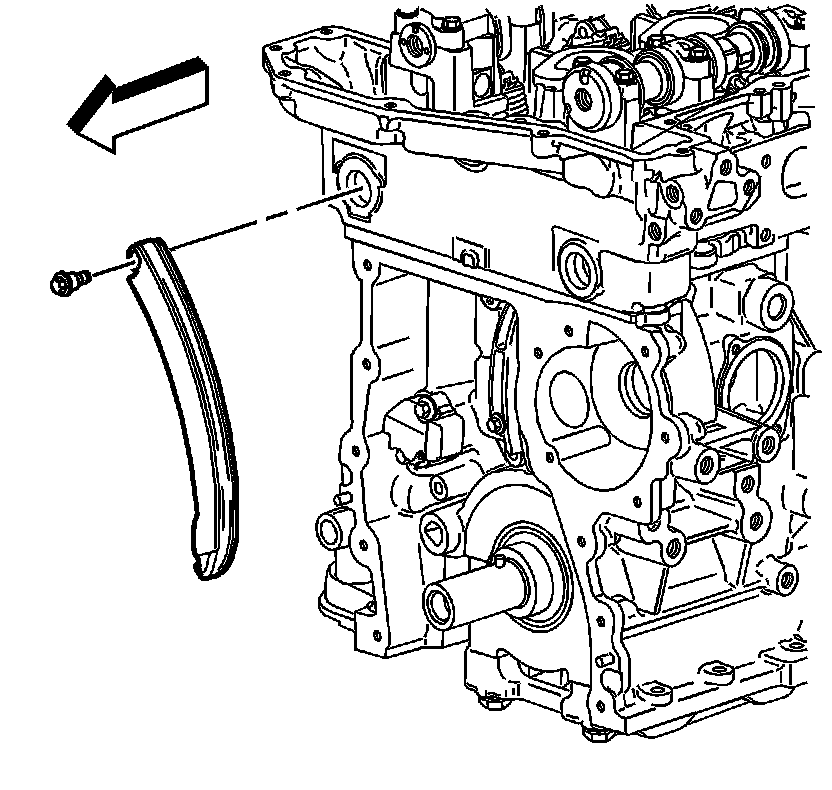

3. Install the timing chain tensioner guide.
4. Install the timing chain tensioner guide bolts and tighten to 22 Nm (16 lb ft).

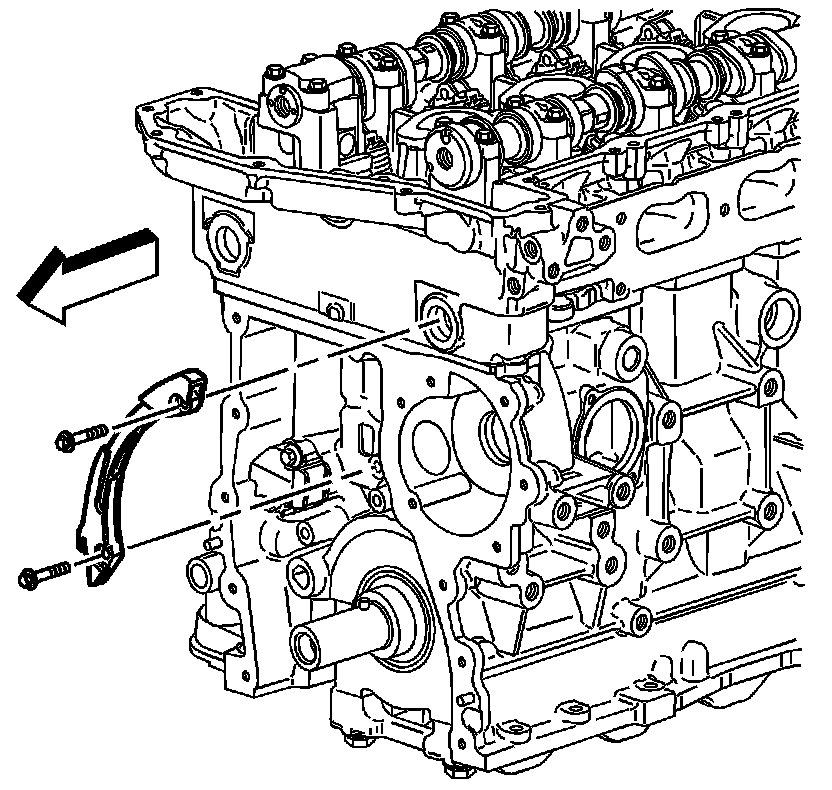

5. Install the timing chain tensioner shoe.
6. Install the timing chain tensioner shoe bolt and tighten to 25 Nm (18 lb ft).

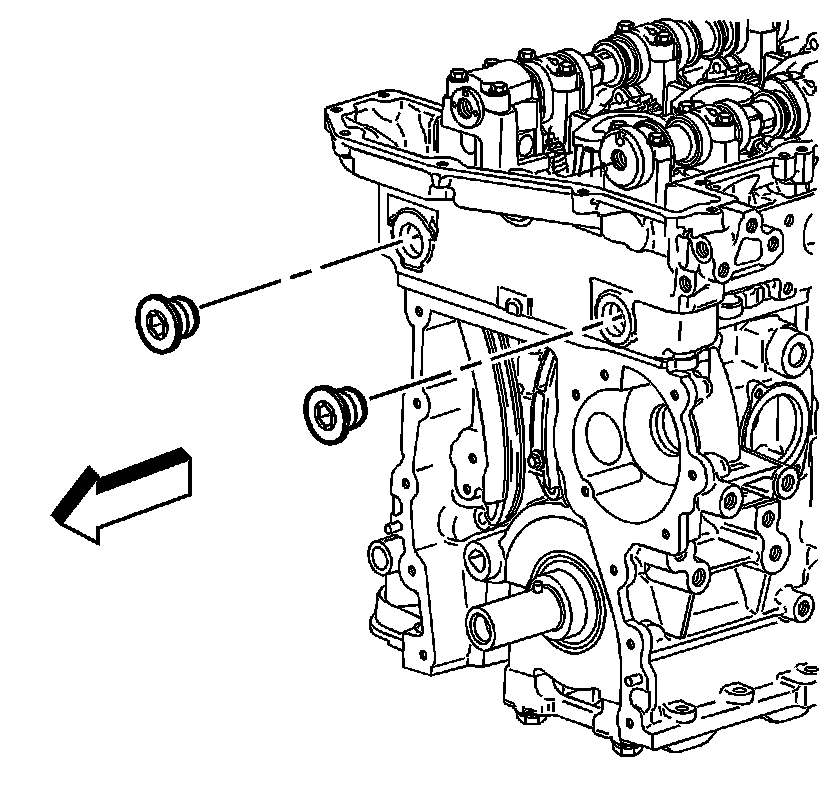

7. Install the cylinder head access hole plugs and tighten to 5 Nm (44 lb in).
