76. Engine Lift Bracket Installation

Engine Lift Bracket Installation

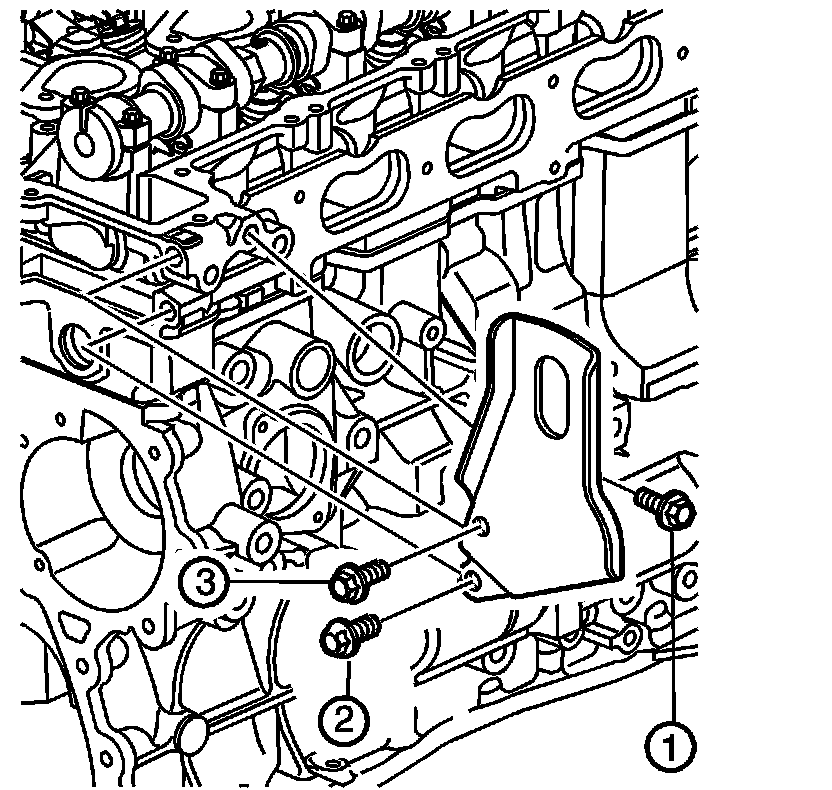

1. Install the engine lift bracket.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the engine lift bracket bolts in sequence.

1. Tighten the engine lift bracket bolts a first pass in sequence to 5 Nm (44 lb in)
2. Tighten the engine lift bracket bolts a final pass in sequence to 50 Nm (37 lb ft)
