69. Flywheel Locator Installation

Flywheel Locator Installation

Special Tools
* J 45949 Pilot Bearing and Flywheel Locator Installer
* J 8433 Two Jaw Puller

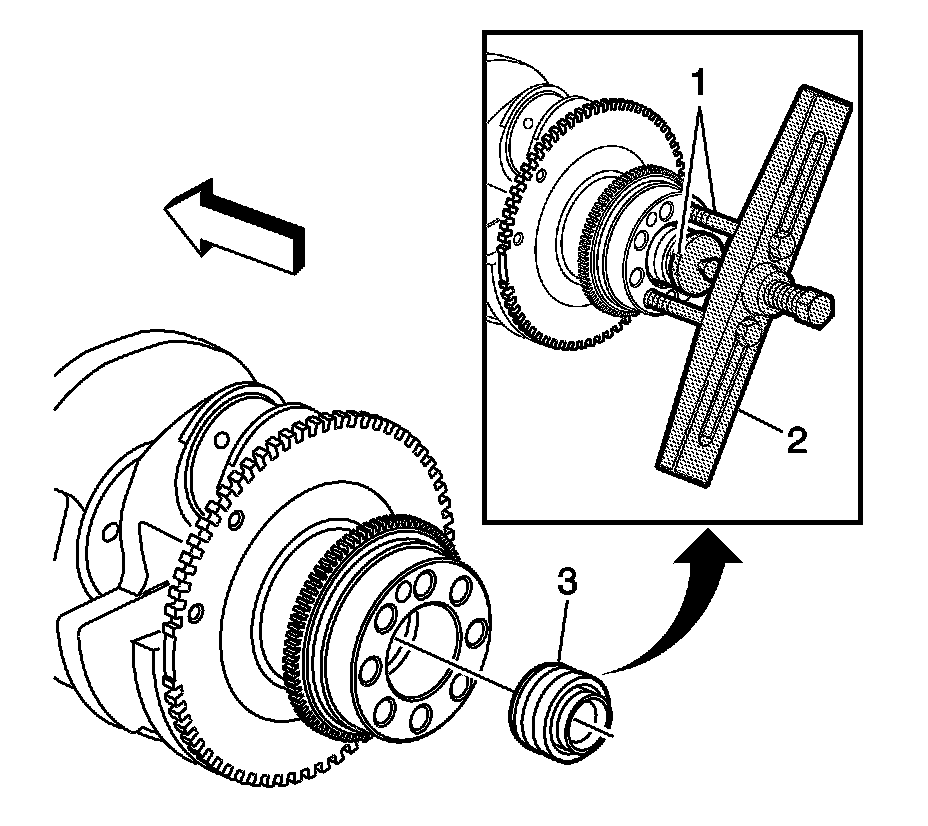

1. Install the flywheel locator (3) into the crankshaft using J 8433 (2) and J 45949 (1).
2. Remove J 8433 (2) and J 45949 (1).
