46. Piston and Connecting Rod Disassemble

Piston and Connecting Rod Disassemble

Special Tools

EN-46745 - Piston Pin Retainer Remover and Installer

For equivalent regional tools, refer to Special Tools Special Tools





Warning

Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.

Note: Do not reuse the piston rings.

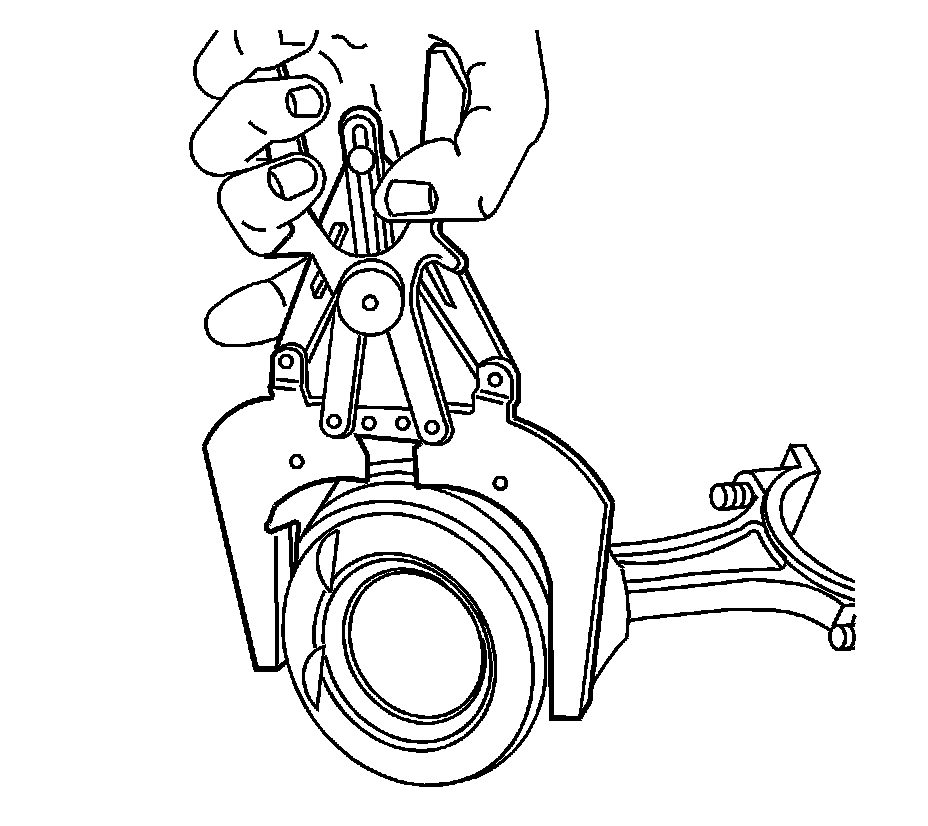

1. Remove the piston rings using a piston ring expander.





Note: Two retainers hold the piston pins in place. Reuse the retainers if they are not damaged during removal.

2. Remove the piston pin retainers using EN-46745 - installer.




3. Remove the piston pin.
