31. Camshaft Removal

Camshaft Removal

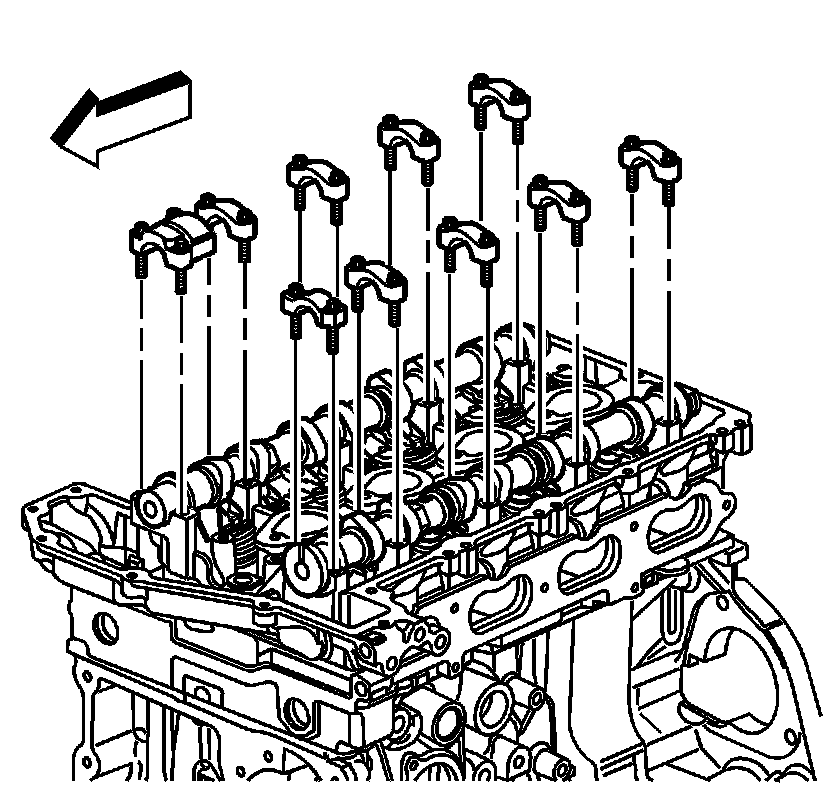

1. Remove the camshaft cap bolts.

Important: Place the camshaft caps in a rack to ensure the caps are installed in the same location from which they were removed.


2. Remove the camshaft caps.

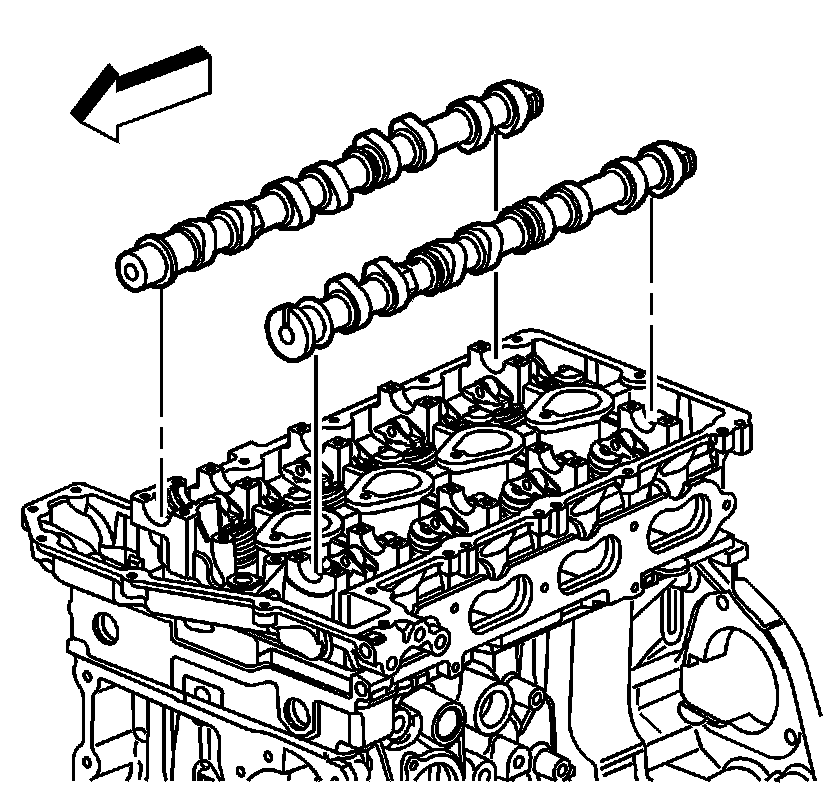

3. Remove the camshafts.
