21. Crankshaft Balancer Removal

Crankshaft Balancer Removal

Tools Required:
* J-41816 Crankshaft Balancer Remover
* J 41816-2 Crankshaft End Protector
* J-41816-3 Crankshaft Balancer Remover Legs




1. Remove the crankshaft balancer bolt and discard.

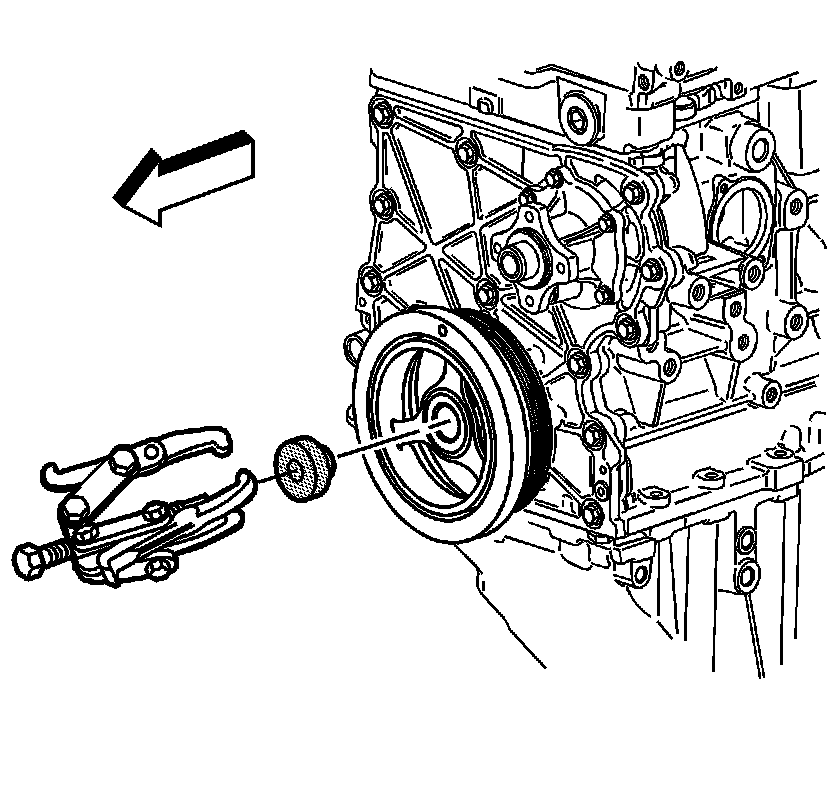

2. Install J 41816-2 into the end of the crankshaft.

Important: Do not pull on outer edge of the crankshaft balancer.


3. Use J-41816 and J-41816-3 to remove the crankshaft balancer.
4. Remove J 41816-2 .
