Home >> GMC >> 2012 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> 101. Crankshaft Rear Oil Seal Installation

101. Crankshaft Rear Oil Seal Installation




Crankshaft Rear Oil Seal Installation

Tools Required

J 44215 Rear Seal Installer




1. Use the plastic installation sleeve supplied with the new seal when installing a new seal.

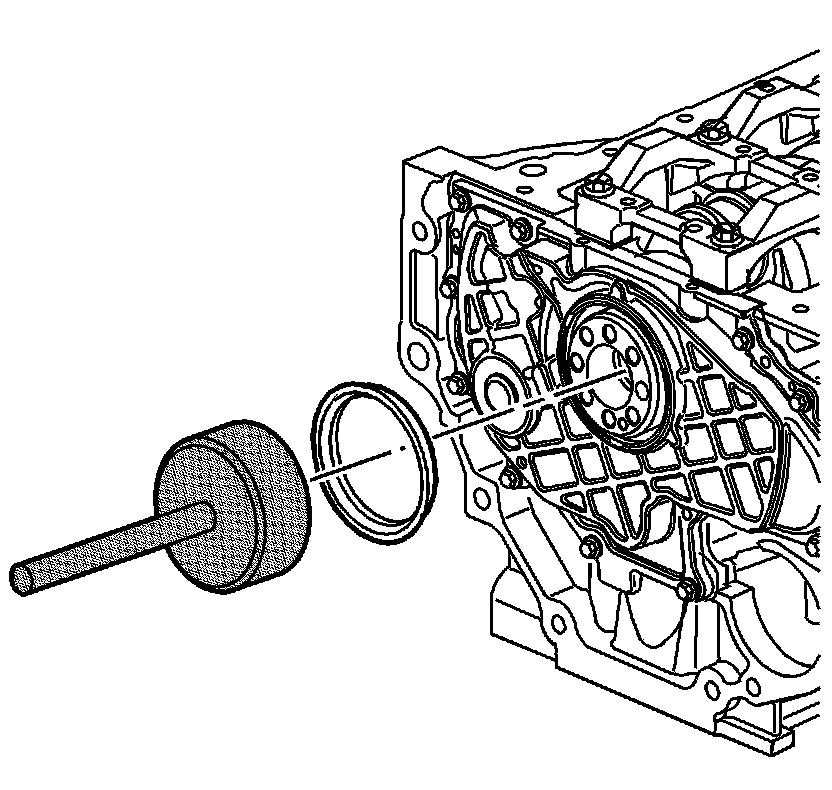

Use J 44215 to install the crankshaft rear oil seal.
2. Remove J 44215 .
