100. Drive Belt Idler Pulley Installation




Drive Belt Idler Pulley Installation

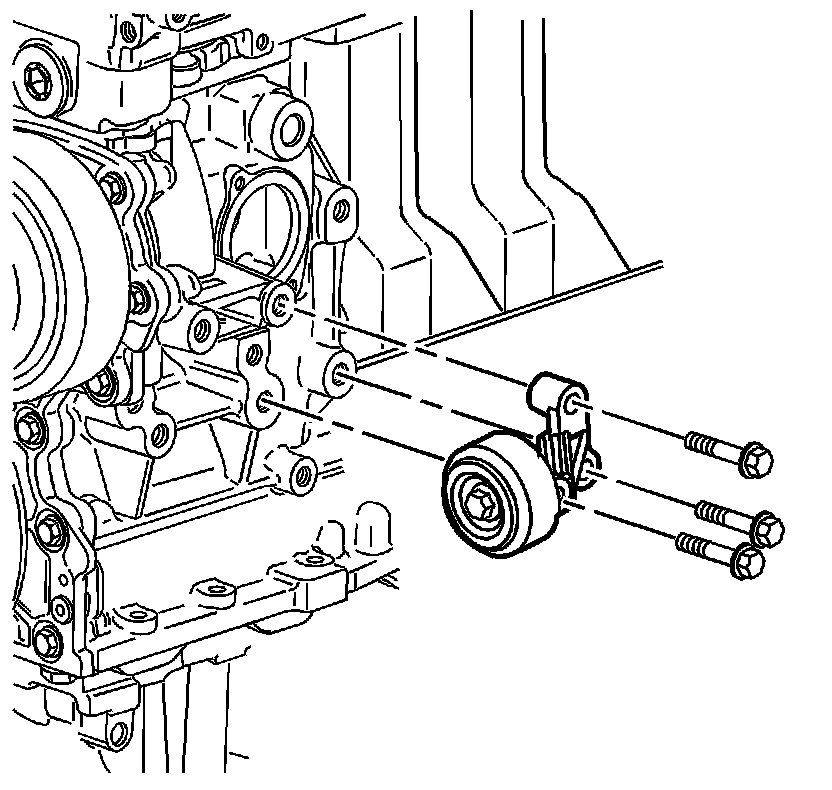

1. Install the drive belt idler pulley.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the drive belt idler pulley bolts and tighten to 50 Nm (37 lb ft).
