Secondary Air Injection (AIR) Pump Relay (K18)
Secondary Air Injection (AIR) Pump Relay (K18)
Component Connector End Views

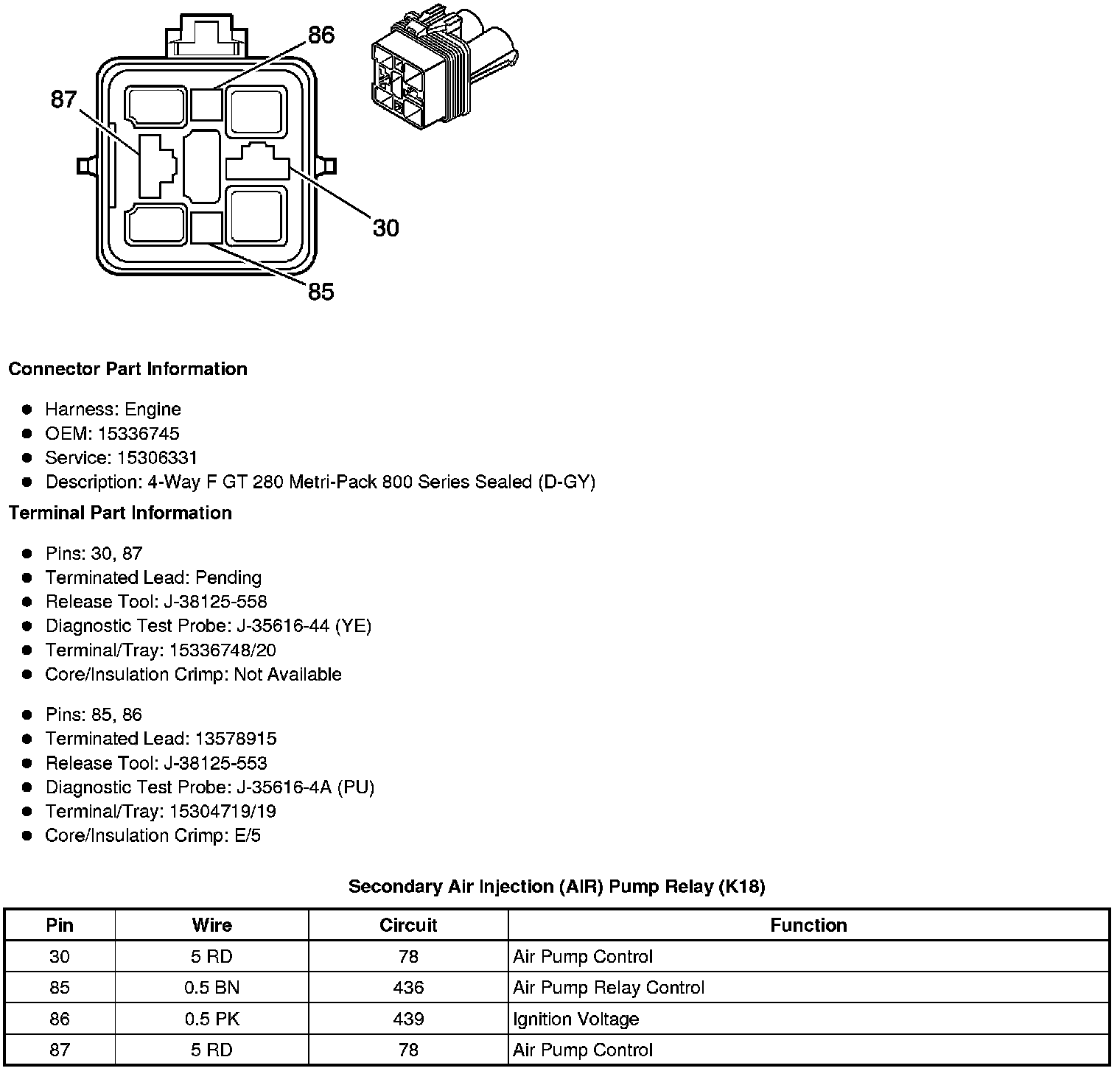

Secondary Air Injection (AIR) Pump Relay (K18)
