Automatic Transmission Internal Mode Switch (IMS) (M30)
Automatic Transmission Internal Mode Switch (IMS) (M30)
Component Connector End Views

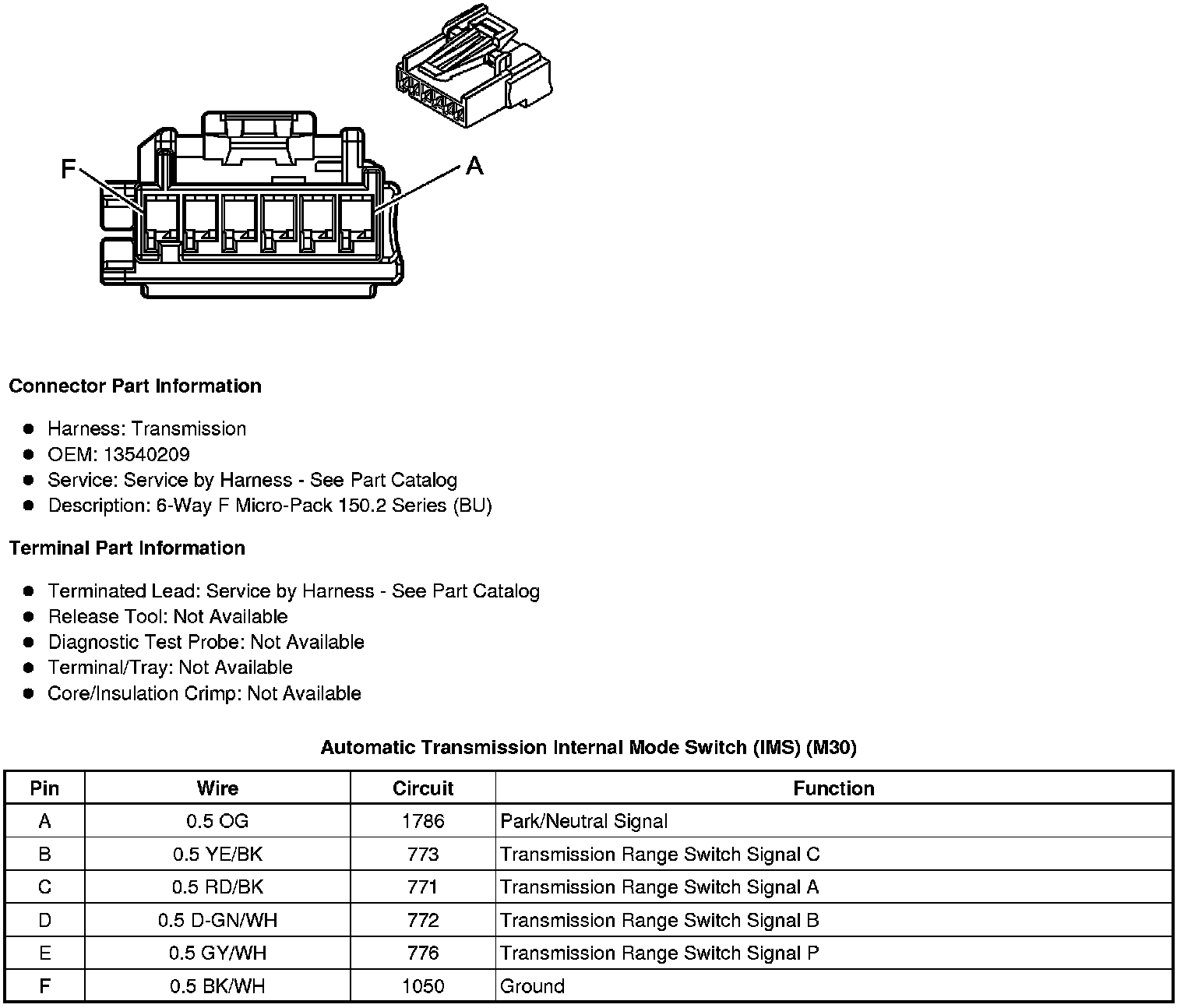

Automatic Transmission Internal Mode Switch (IMS) (M30)
