X700
>>
Body Harness to the Left Rear Door Harness (Crew Cab)
Body Harness to the Left Rear Door Harness (Crew Cab)

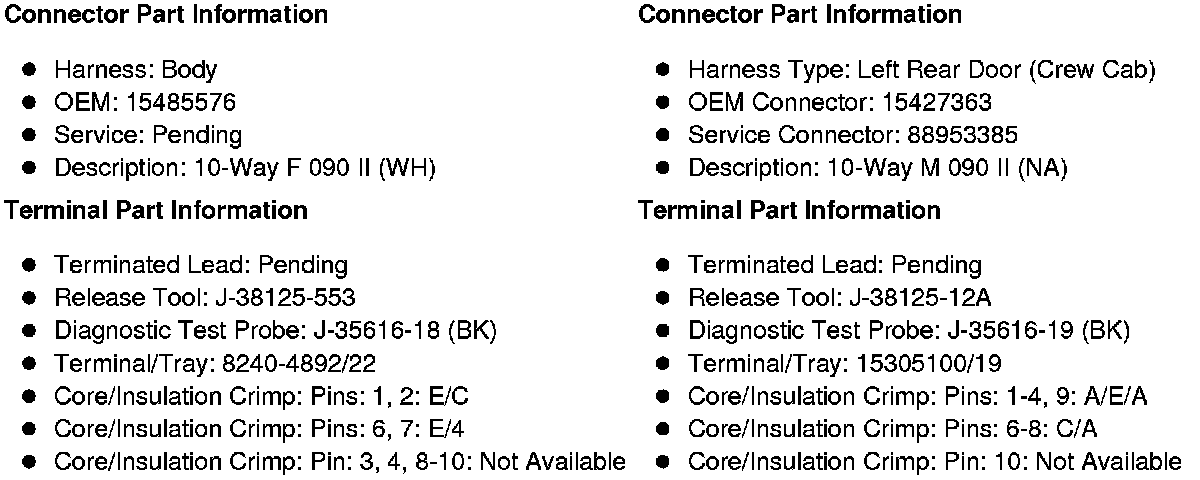

Inline Harness Connector End Views

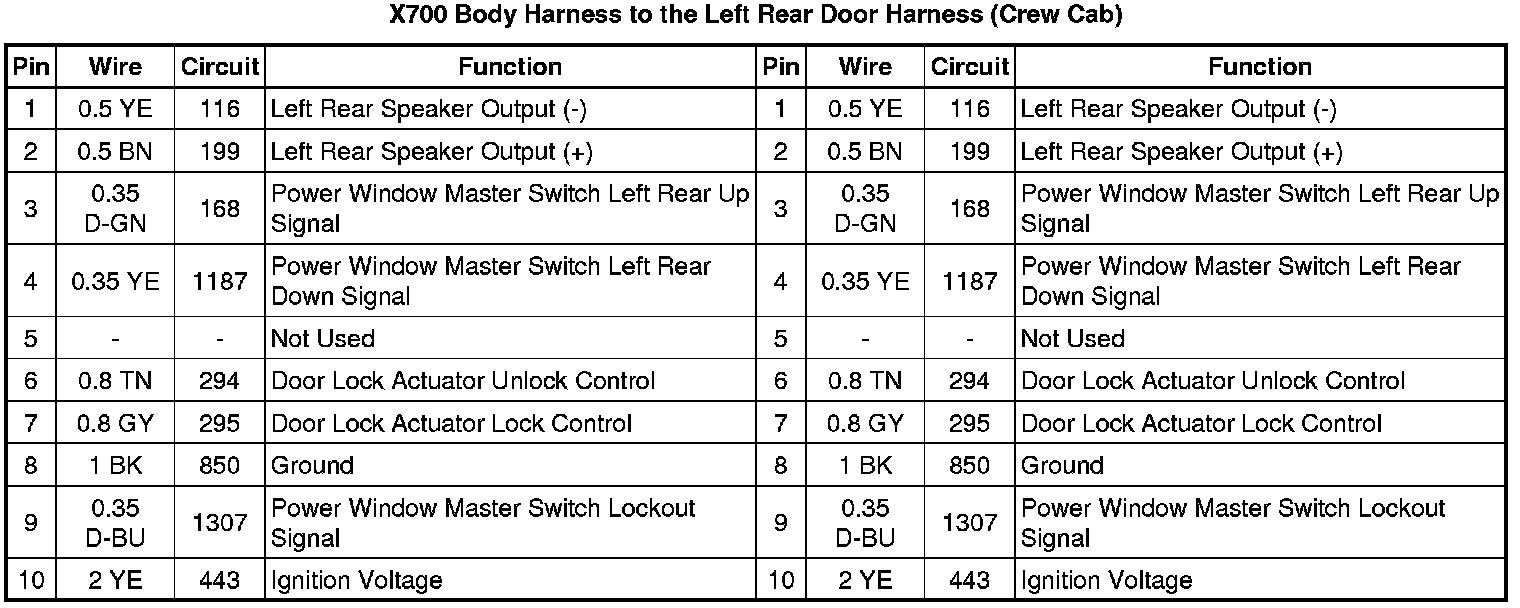

X700 Body Harness to the Left Rear Door Harness (Crew Cab)
