X501

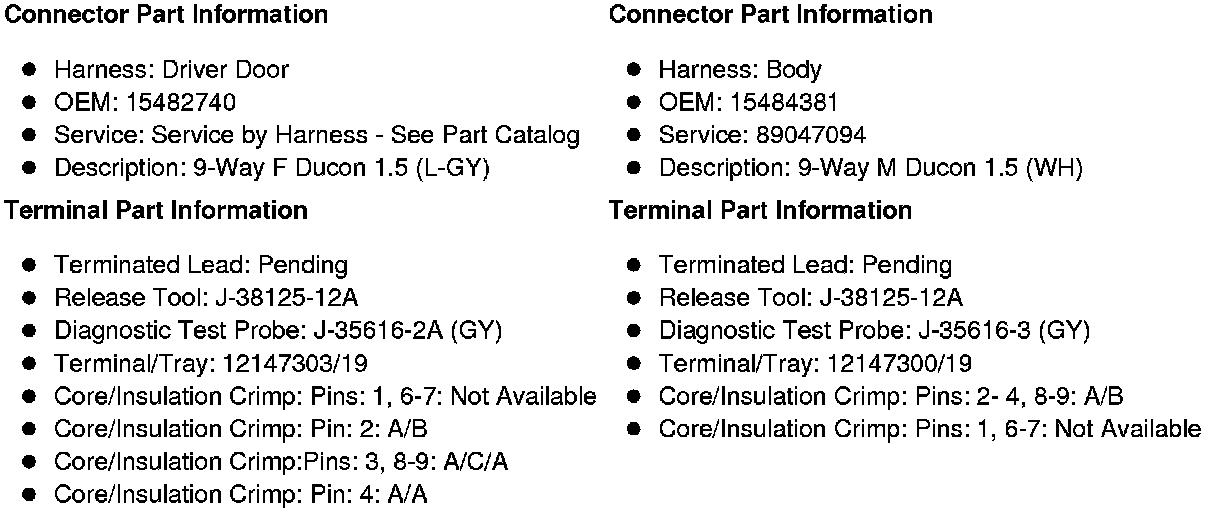

Inline Harness Connector End Views

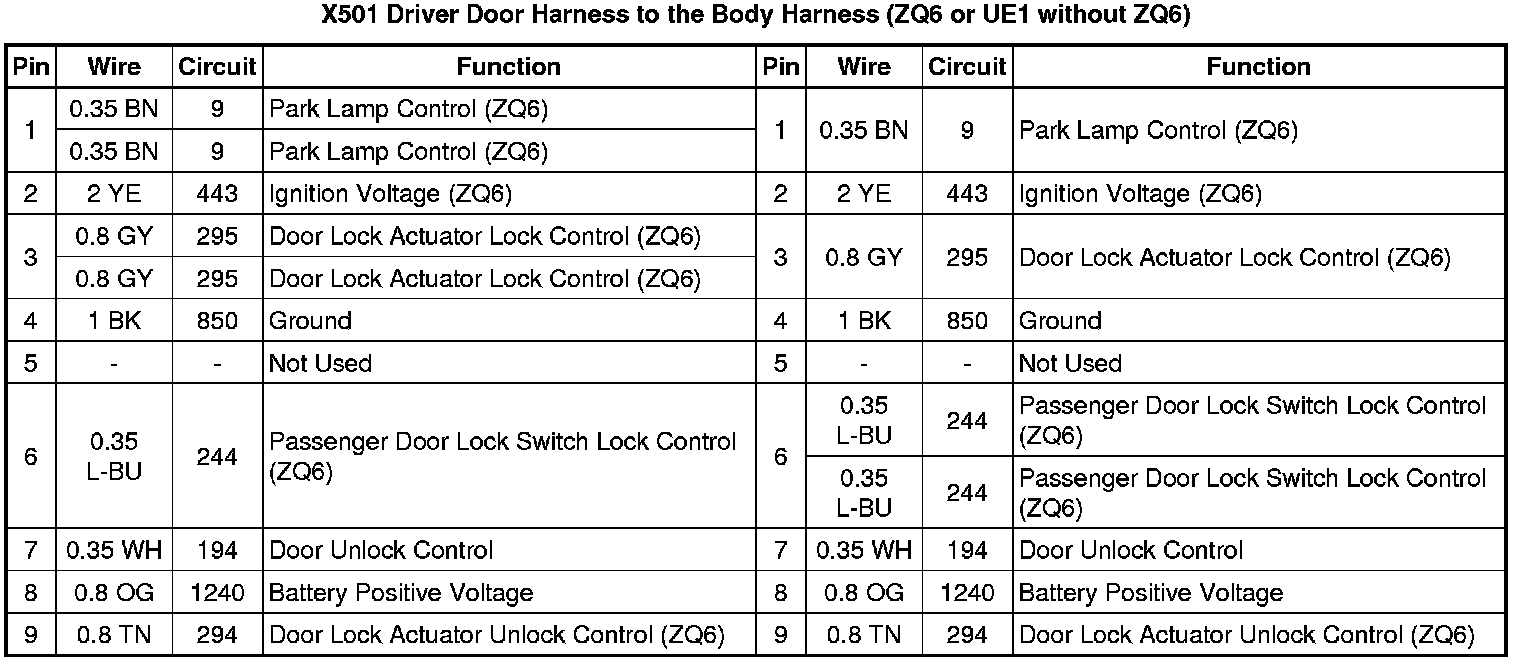

X501 Driver Door Harness to the Body Harness (ZQ6 or UE1 without ZQ6)
