X319




Inline Harness Connector End Views

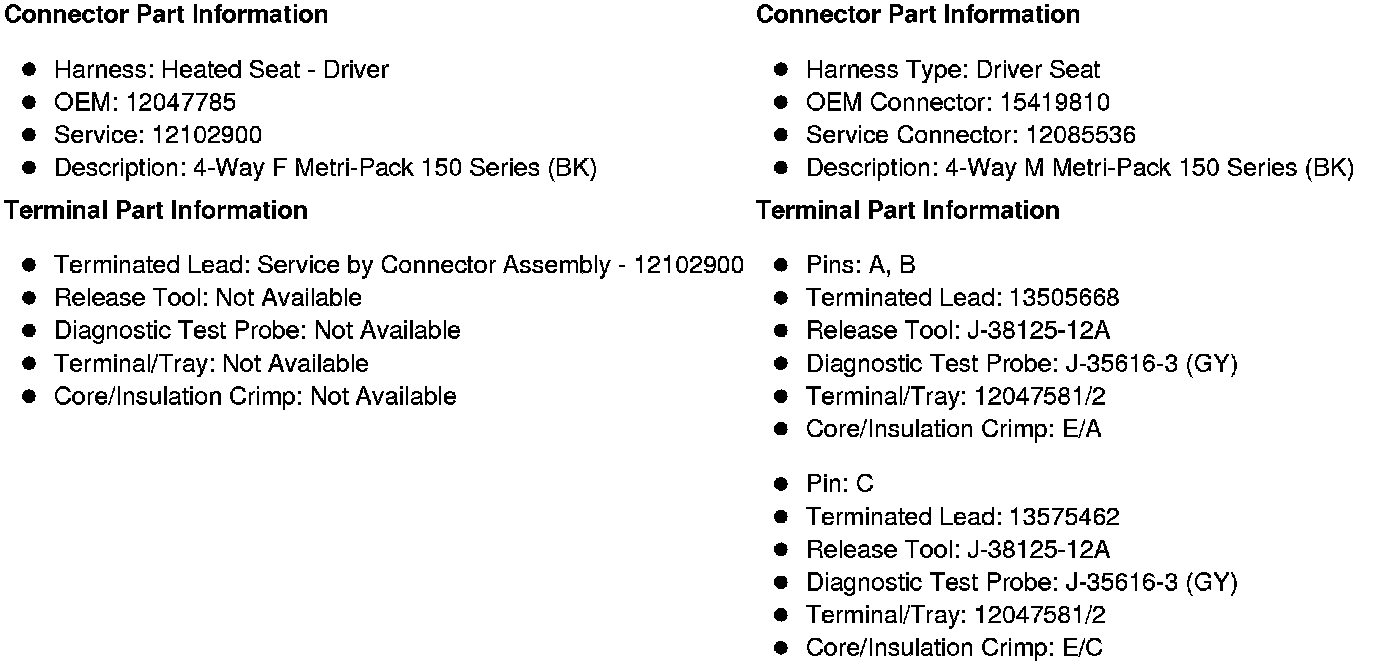

X319 Heated Seat - Driver Harness to Driver Seat Harness (KA1)
