X270




Inline Harness Connector End Views

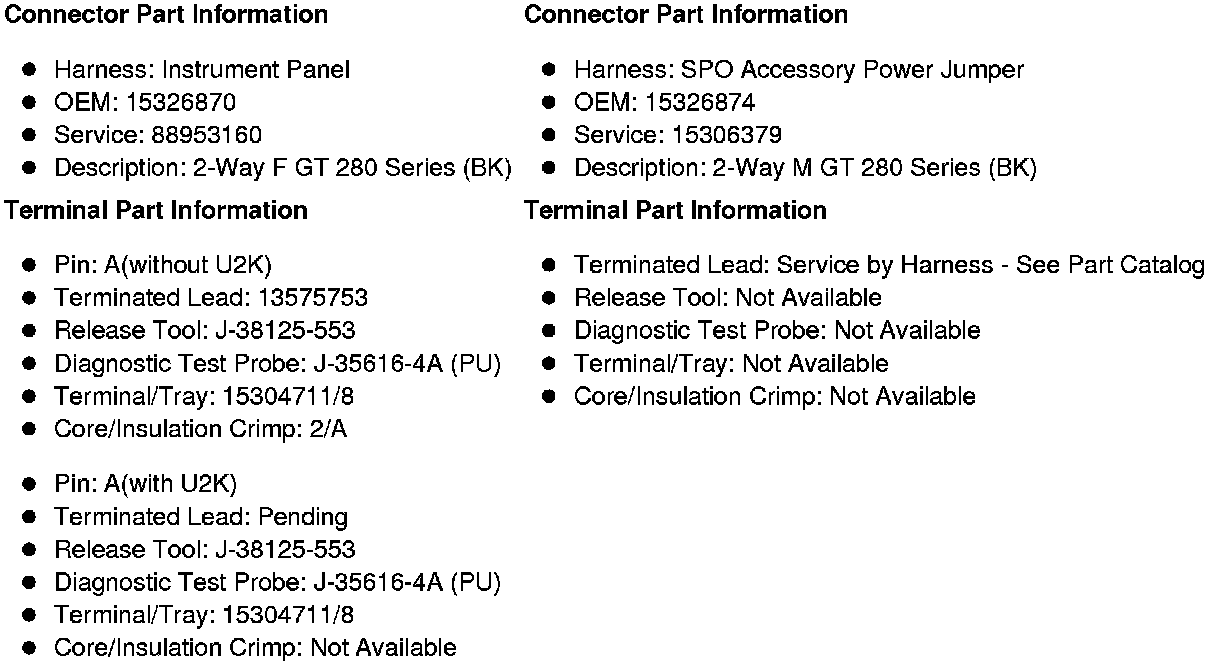

X270 I/P Harness to the SPO Accessory Power Jumper Harness (SPO DVD)
