Seat Adjuster Motor Assembly - Driver (AG1)
Seat Adjuster Motor Assembly - Driver (AG1)
Component Connector End Views

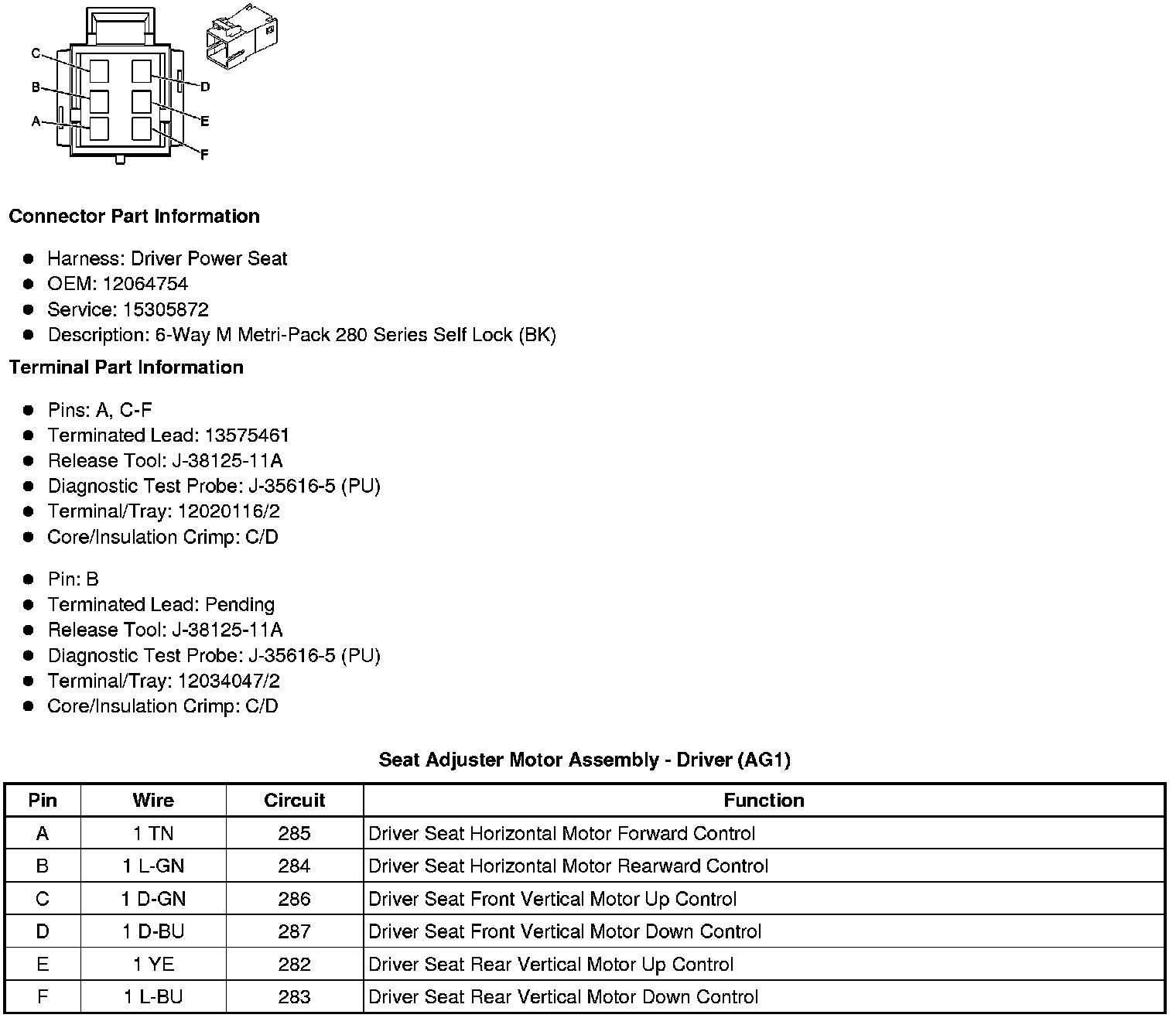

Seat Adjuster Motor Assembly - Driver (AG1)
