Inside Rearview Mirror (ISRVM) (DF5 or UE1)

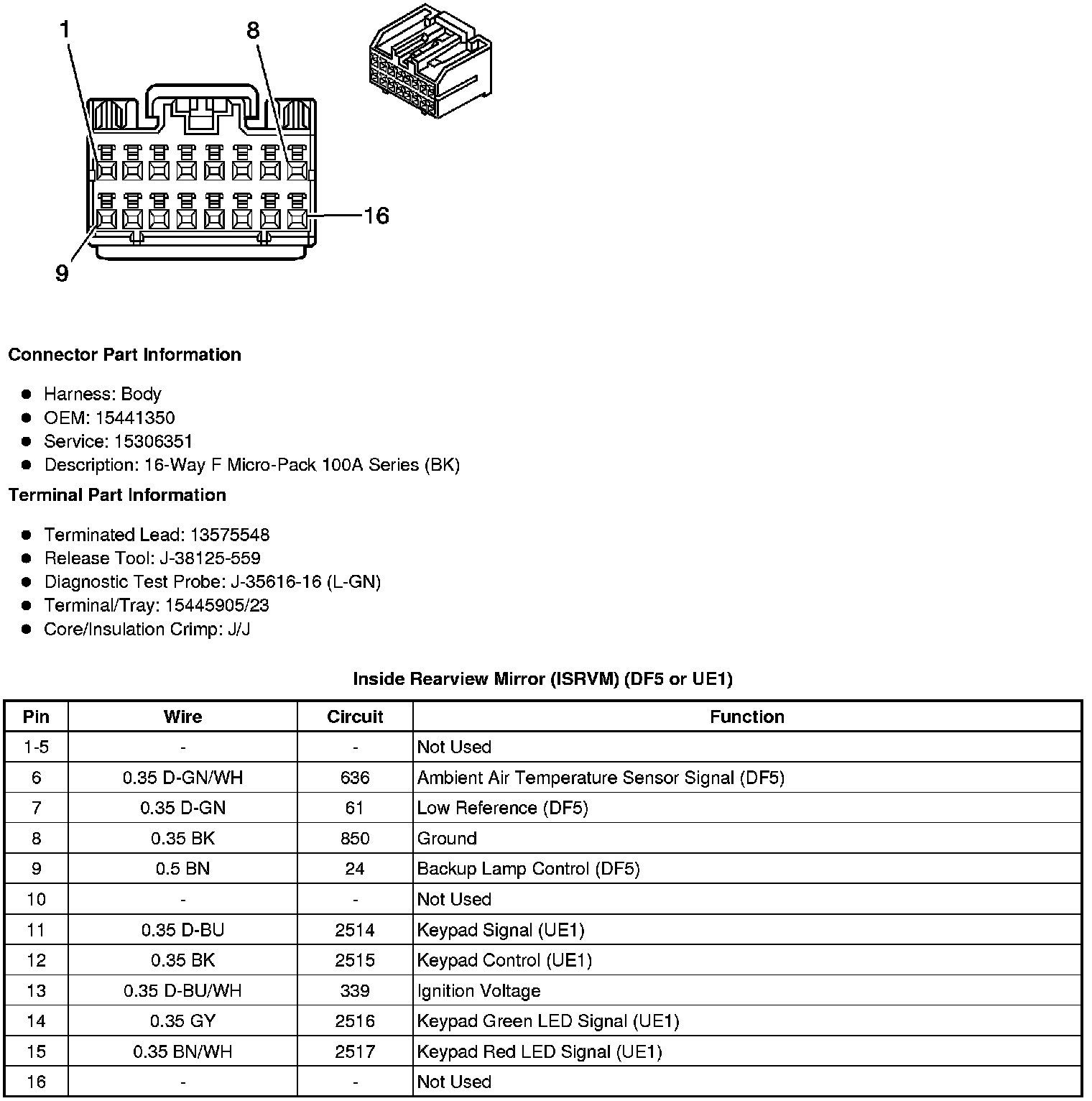

Component Connector End Views
Inside Rearview Mirror (ISRVM) (DF5 or UE1)
