Front Drive Axle Actuator (NP1)

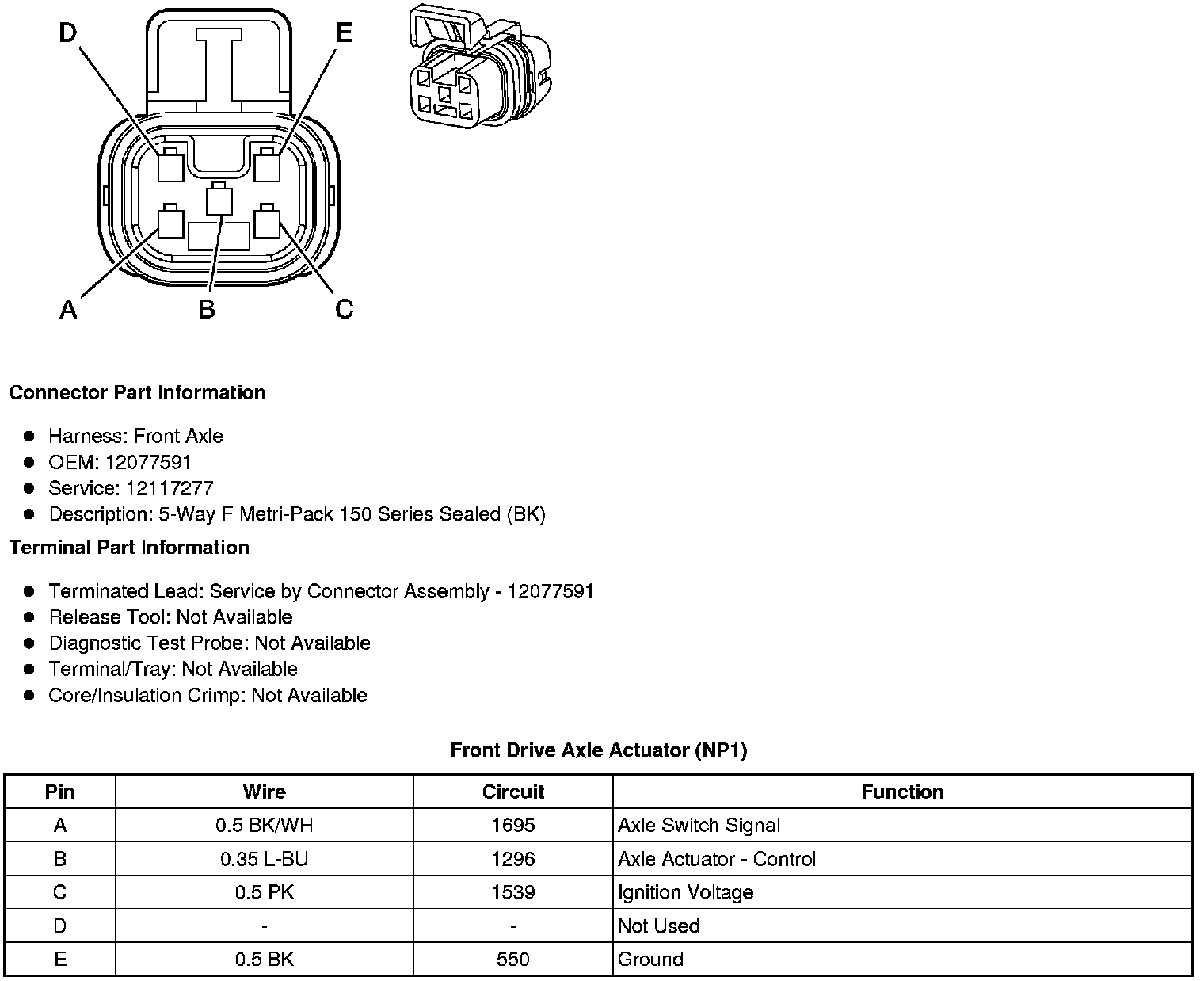

Front Drive Axle Actuator (NP1)
Component Connector End Views
Front Drive Axle
Actuator
(NP1)
