GMC
>>
2012
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>

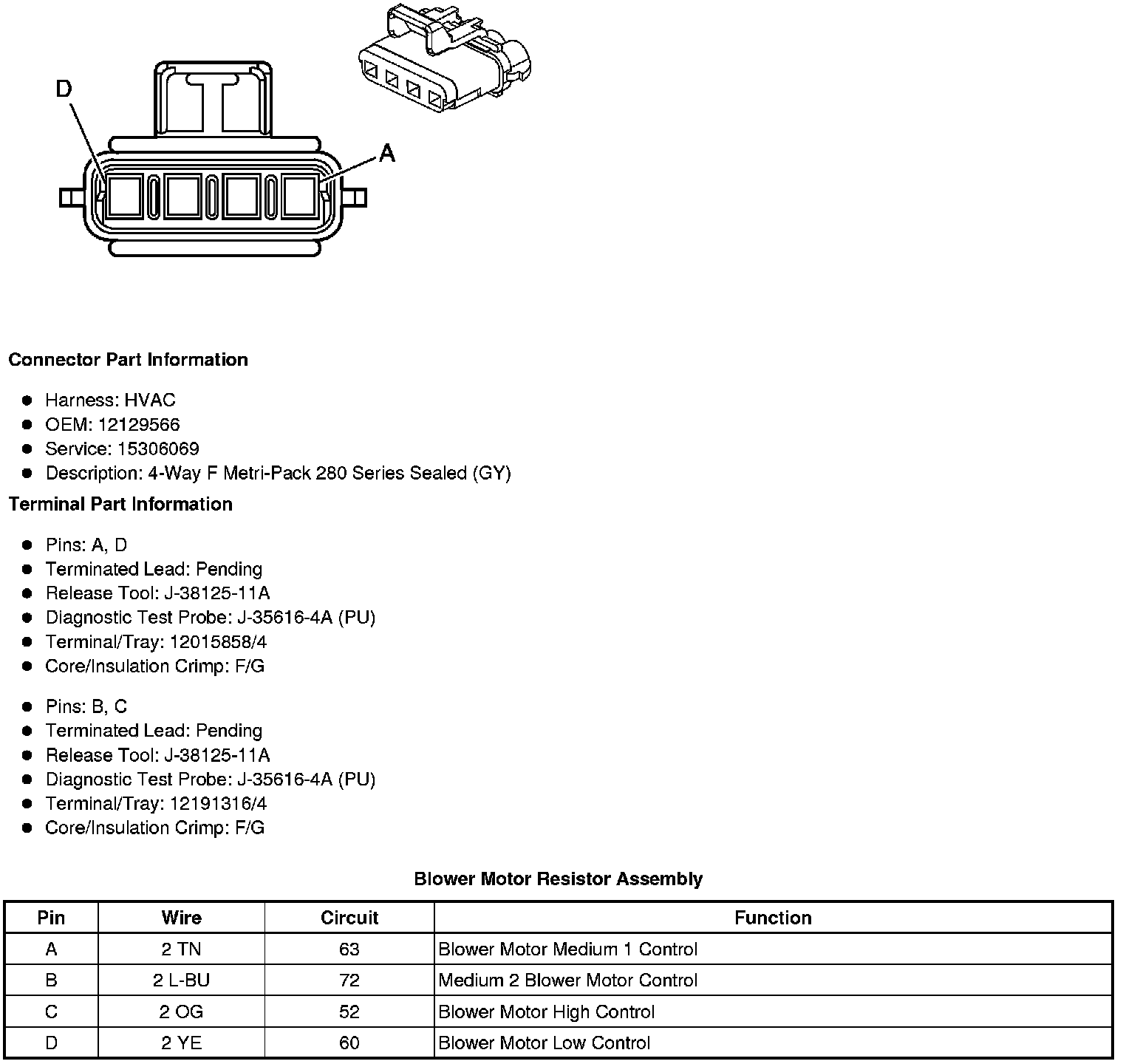

Blower Motor Resistor Assembly
Blower Motor Resistor Assembly
Component Connector End Views
Blower Motor Resistor Assembly
