Outside Rearview Mirror - Passenger (ZQ6)
Outside Rearview Mirror - Passenger (ZQ6)

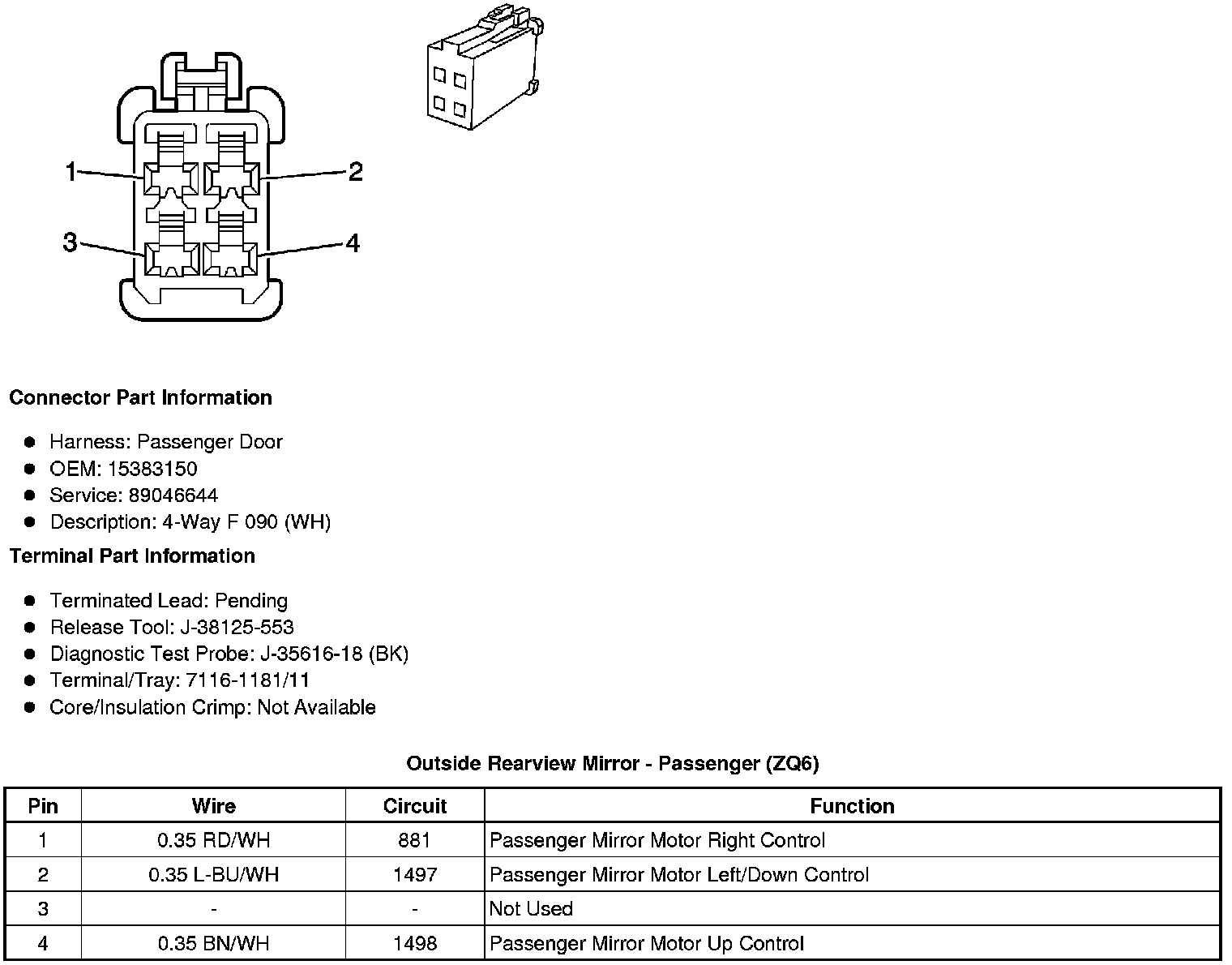

Component Connector End Views
Outside Rearview Mirror - Passenger (ZQ6)
