Hood Rear Seal Replacement

Hood Rear Seal Replacement

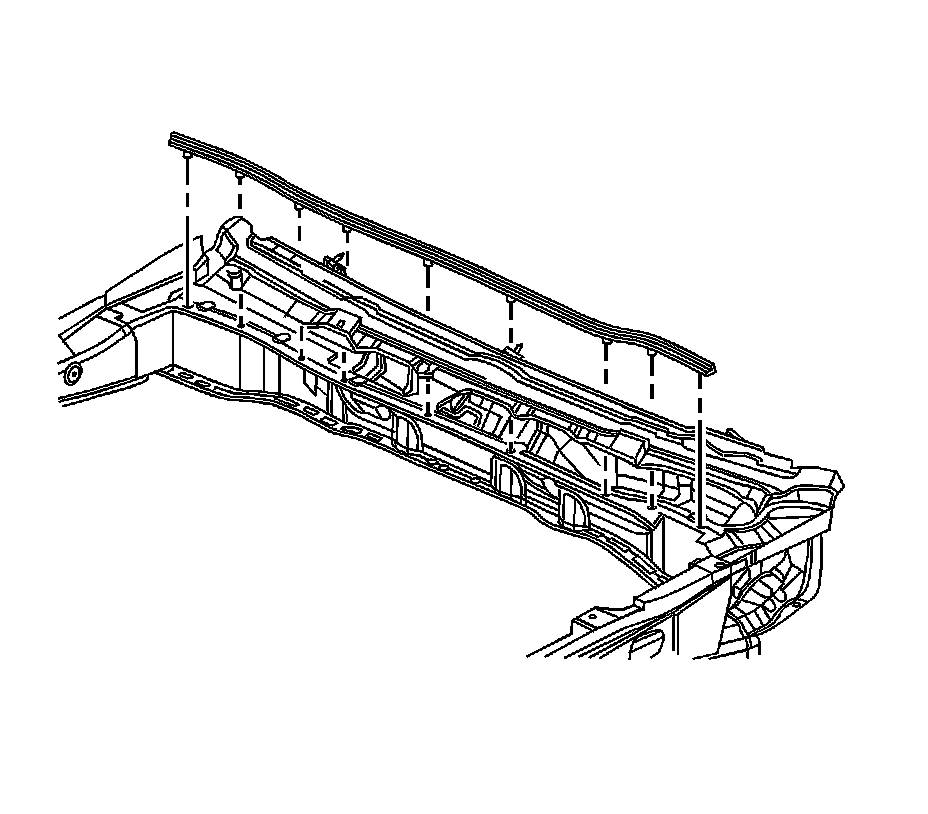

Removal Procedure




1. Open the hood.
2. Grasp the rear hood seal at each retainer and lift upwards to remove.
3. Remove the seal from the upper cowl panel.

Installation Procedure




1. Position the seal to the upper cowl panel.
2. Insert each retainer into the holes in the body.
3. Close the hood.
