Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement












2.Remove the rear bumper step center pad. Refer to Rear Bumper Step Center Pad Replacement .

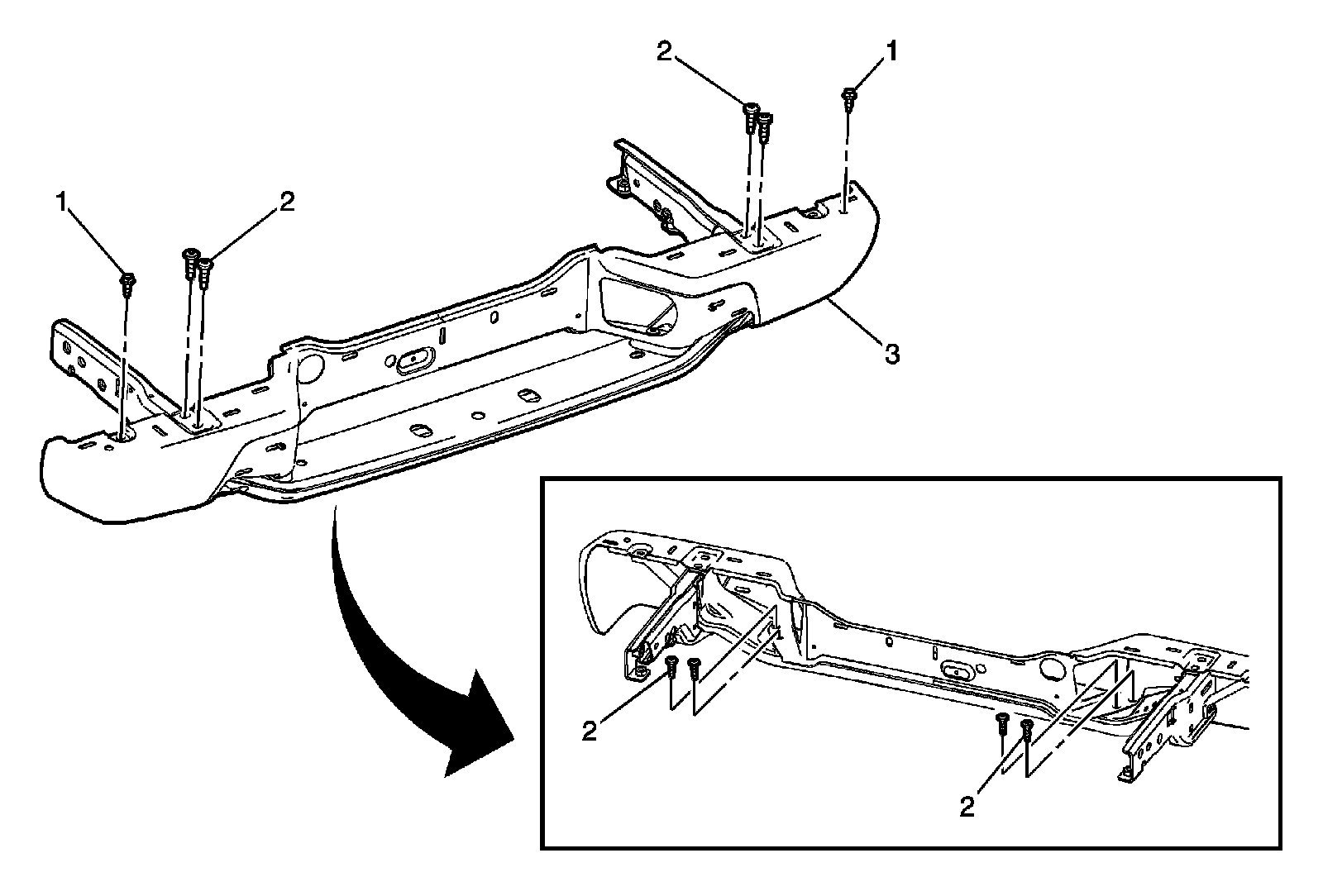

1Rear Bumper Impact Bar Bolt (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

2Rear Bumper Impact Bar Bracket (Qty: 8)Tighten 40 N �m (30 lb ft)

3Rear Bumper Impact Bar
