Radio/Navigation System Schematics




Radio/Navigation System Schematics

Power, Ground, and Serial Data

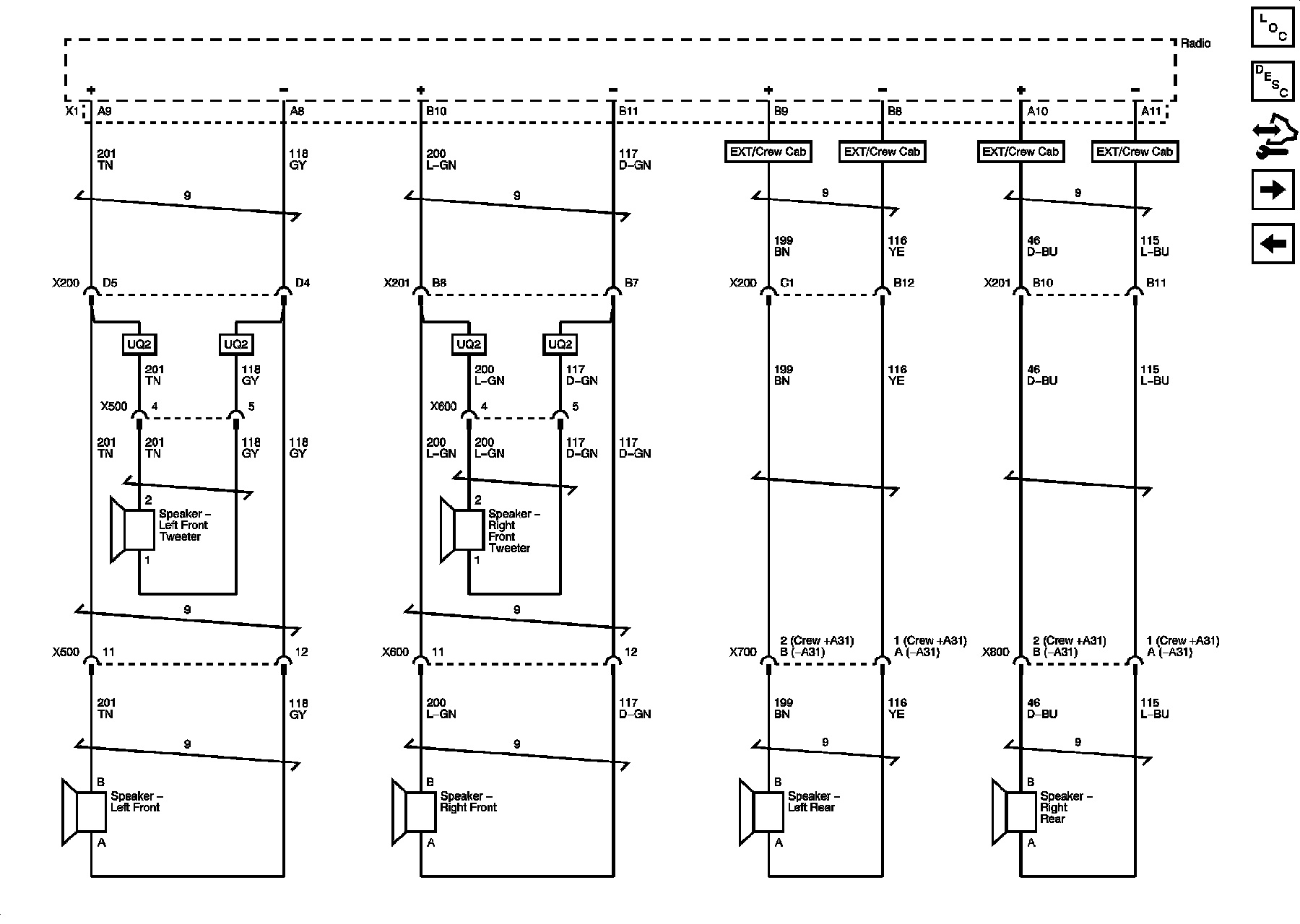

Speakers





Digital Radio (U2K)
