Cellular Phone Microphone: Locations

Harness Routing Views

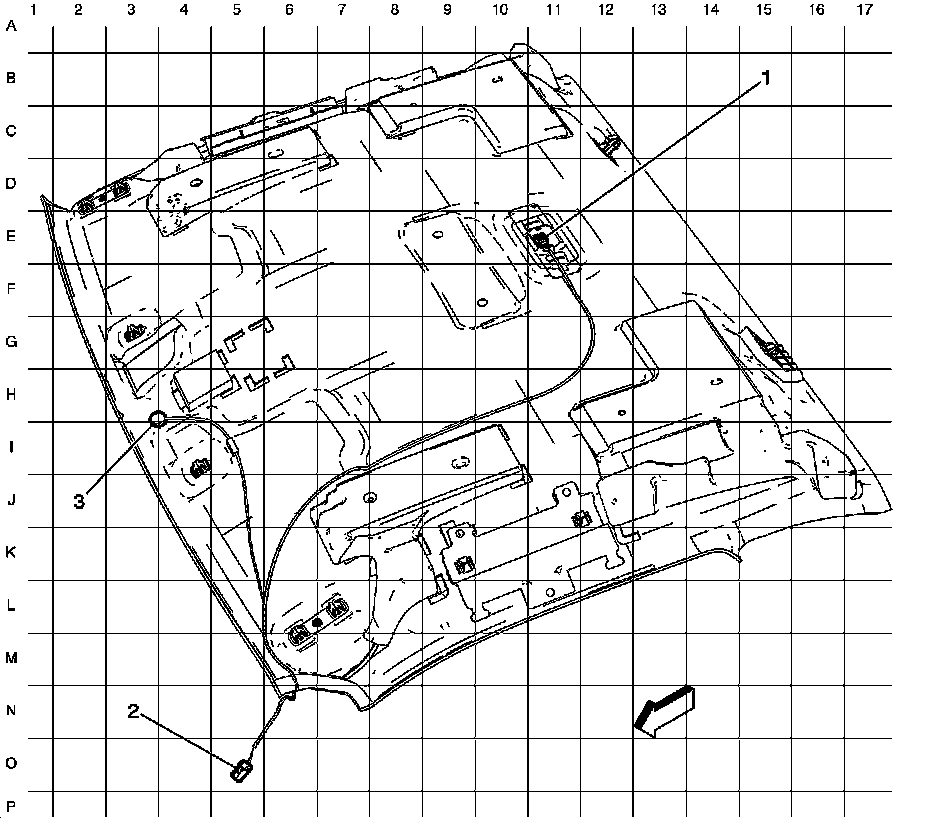

Headliner Harness Routing

1 - Dome/Reading Lamp
2 - X310
3 - Cellular Telephone Microphone (UE1)
