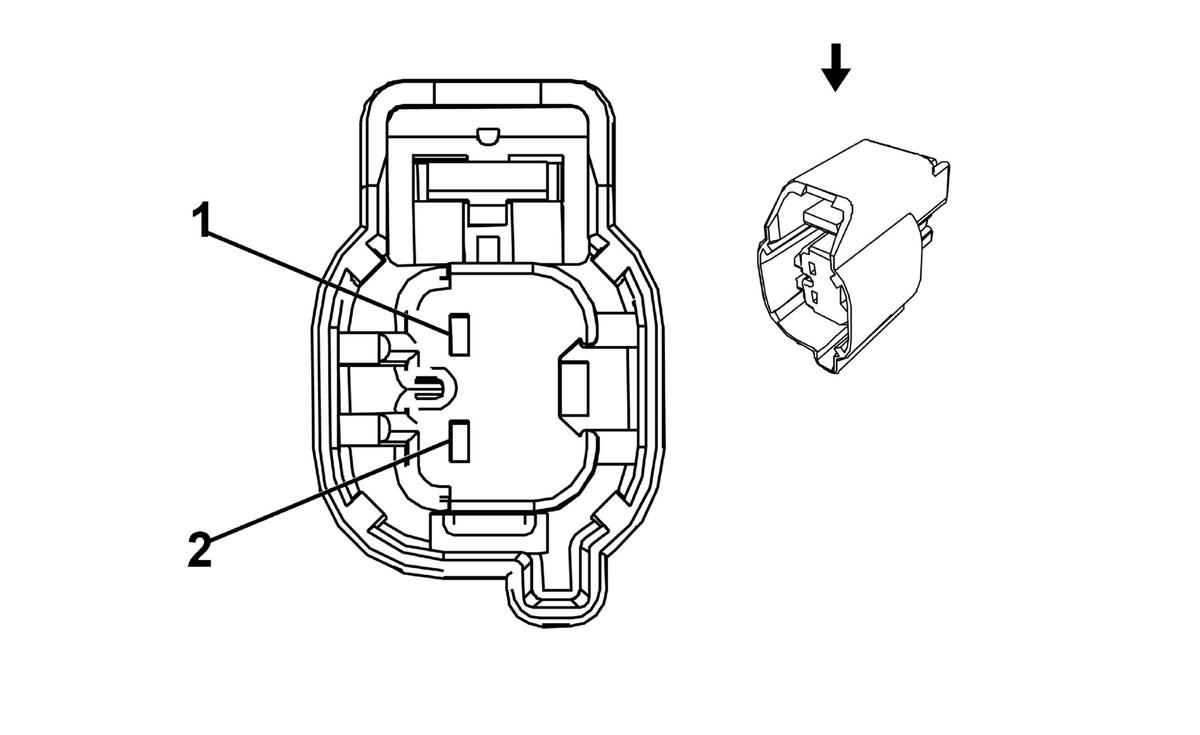

Speaker - Left Rear (UQA or UQS with W49)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 19168540
- Service Connector: 13504282
- Description: 2-Way F GT 150 Series (L-GY)
|
Terminal Part Information
- Terminated Lead: 13575735
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191812/19
- Core/Insulation Crimp: C/A
|
Speaker - Left Rear (UQA or UQS with W49)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 YE |
116 |
Left Rear Speaker Output (-) |
| 2 |
0.8 BN |
199 |
Left Rear Speaker Output (+) |
