Heated Seat Element - Passenger Cushion (SPO Accessory)
 Courtesy of
|

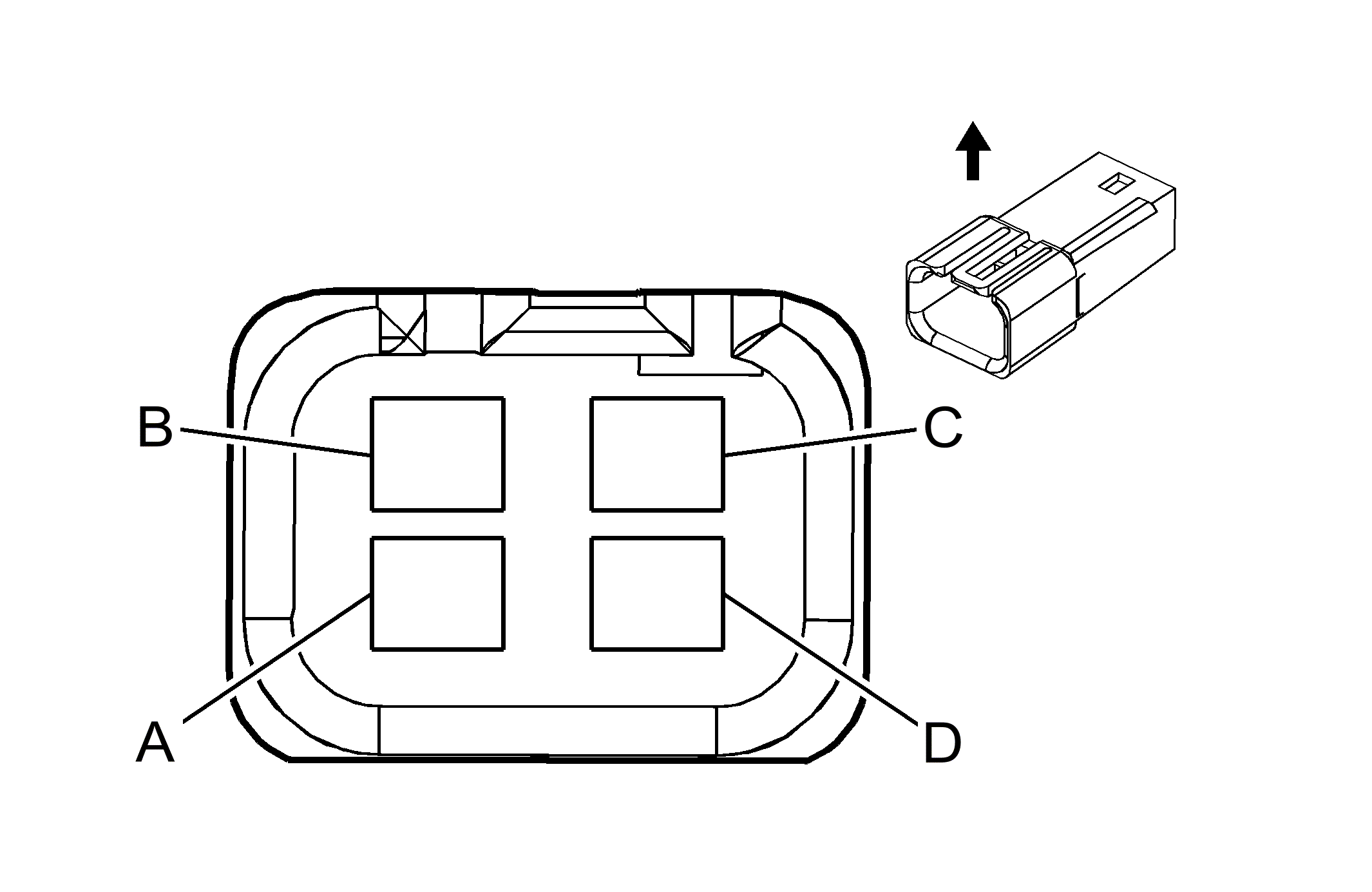

Connector Part Information
- Harness Type: SPO Heated Passenger Seat
- OEM Connector: 12066498
- Service Connector: 12085536
- Description: 4-Way F Metri-Pack 150 (BK)
|
Terminal Part Information
- Pins: A, B
- Terminated Lead: 13505668
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: E/A
- Pins: C, D
- Terminated Lead: 13575462
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: E/C
|
Heated Seat Element - Passenger Cushion (SPO Accessory)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 D-BU |
2479 |
Passenger Heated Seat Element Voltage |
| B |
0.8 PK |
2480 |
Passenger Heated Seat Cushion Element Control |
| C |
0.35 GY |
2434 |
Passenger Heated Seat Cushion Temperature Sensor Signal |
| D |
0.35 L-BU |
5476 |
Low Reference |
