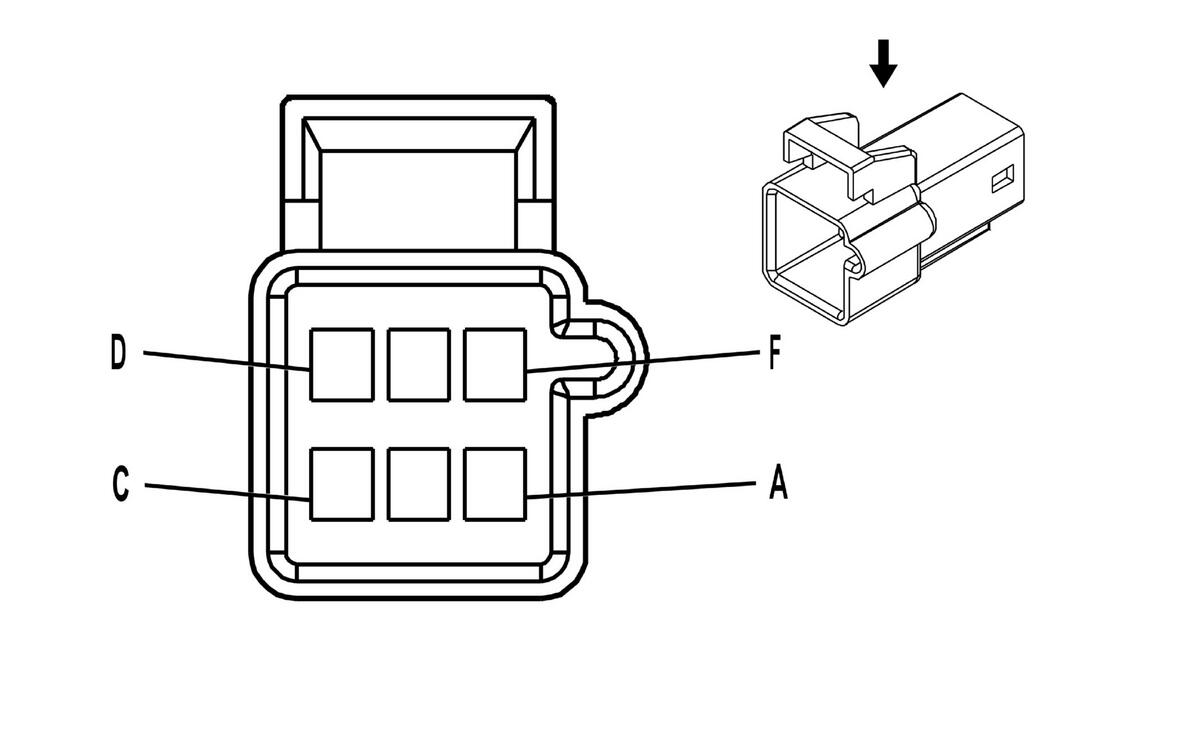

Heated Seat Element - Driver Cushion (KB6)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12064763
- Service Connector: 12101876
- Description: 6-Way M Metri-Pack 150 Series (GY)
|
Terminal Part Information
- Terminated Lead: Pins A, F- 13505668
- Terminated Lead: Pins B-E- 13575462
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: Pins A, F- E/A
- Core/Insulation Crimp: Pins B-E- E/C
|
Heated Seat Element - Driver Cushion (KB6)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 PU |
2424 |
Driver Heated Seat Back Element Control |
| B |
0.35 YE/BK |
2079 |
Driver Heated Seat Temperature Sensor Signal 2 |
| C |
0.35 YE |
2080 |
Low Reference |
| D |
0.35 OG |
7018 |
Seat Cushion Temperature Sensor Signal |
| E |
0.35 OG/WH |
7019 |
Low Reference |
| F |
0.8 L-GN |
2078 |
Heated Seat Cushion Element Control |
