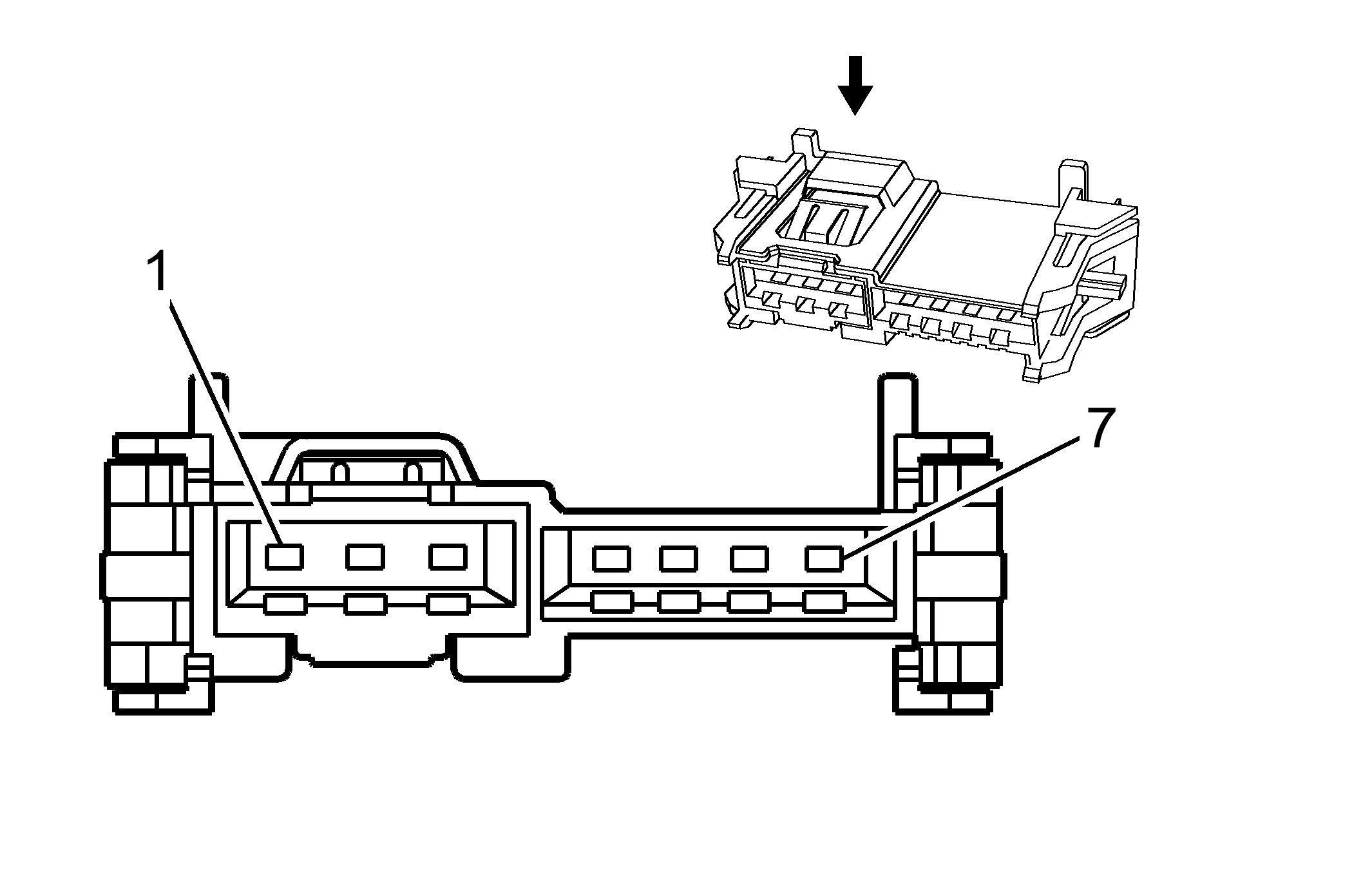

Headlamp Ballast - Left (Z88 with TVD or W49)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: VECR-07
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - VECR-07
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Headlamp Ballast - Left (Z88 with TVD or W49)
| Pin |
Wire |
Circuit |
Function |
| 1 |
COAX |
- |
High Intensity Discharge |
| 2 |
COAX |
- |
High Intensity Discharge |
| 3 |
COAX |
- |
High Intensity Discharge |
| 4-5 |
- |
- |
Not Used |
| 6 |
0.8 BK |
- |
Ground |
| 7 |
0.8 RD |
- |
Left Headlamp Low Beam Voltage (Z88) |
| 0.8 PU |
- |
Left Headlamp Low Beam Voltage (W49) |
