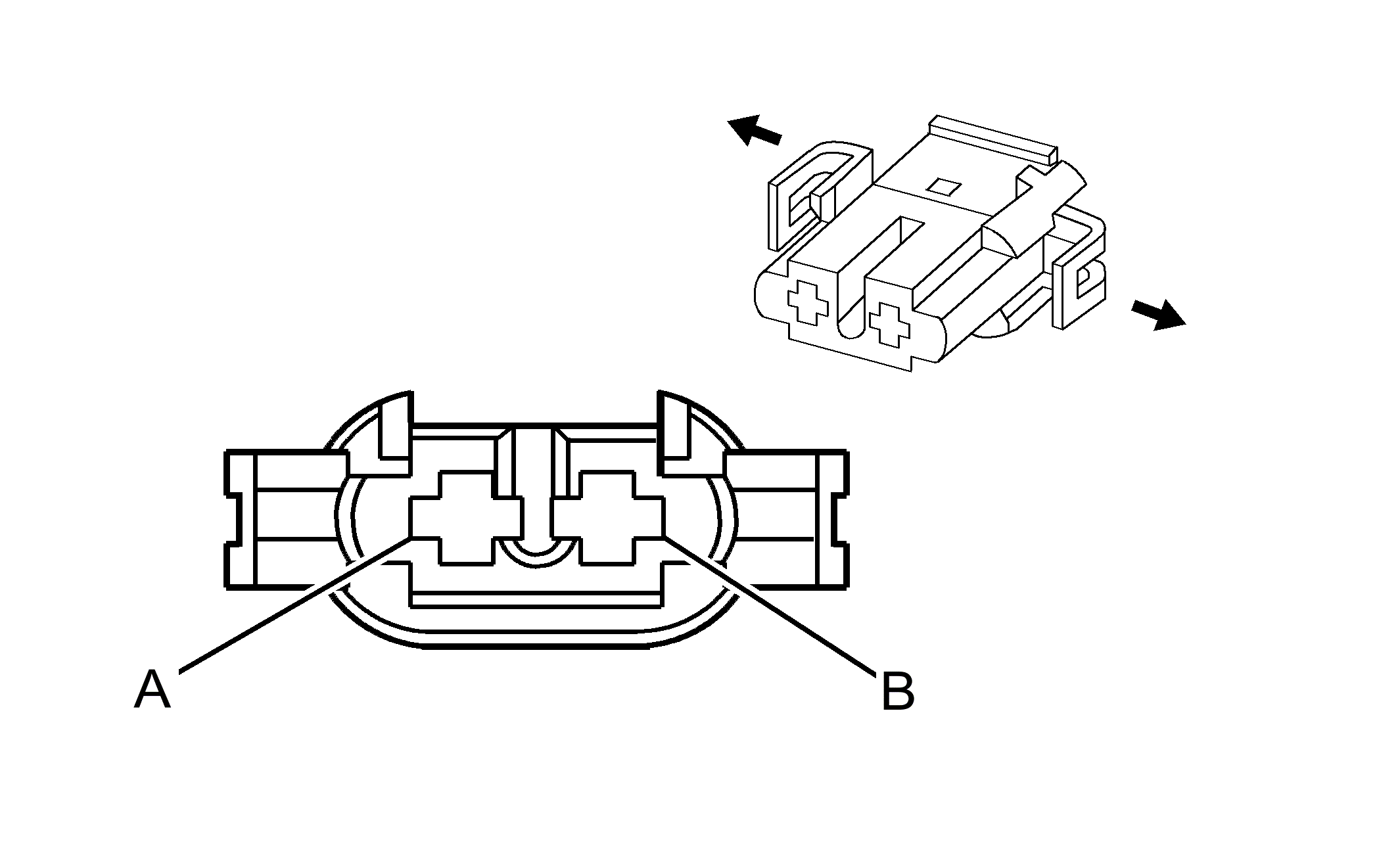

Headlamp - Left Low Beam (Z88 without TVD)

GM2205520Courtesy of
Connector Part Information
  • Harness Type: Left Headlamp
  • OEM Connector: 1444
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F H11 Lamp Socket (GY)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 1444
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Headlamp - Left Low Beam (Z88 without TVD)

Pin Wire Circuit Function
A 1 TN - Left Headlamp Low Beam Voltage
B 1 BK - Ground
