Headlamp - Left High Beam Solenoid (Z88 with TVD)

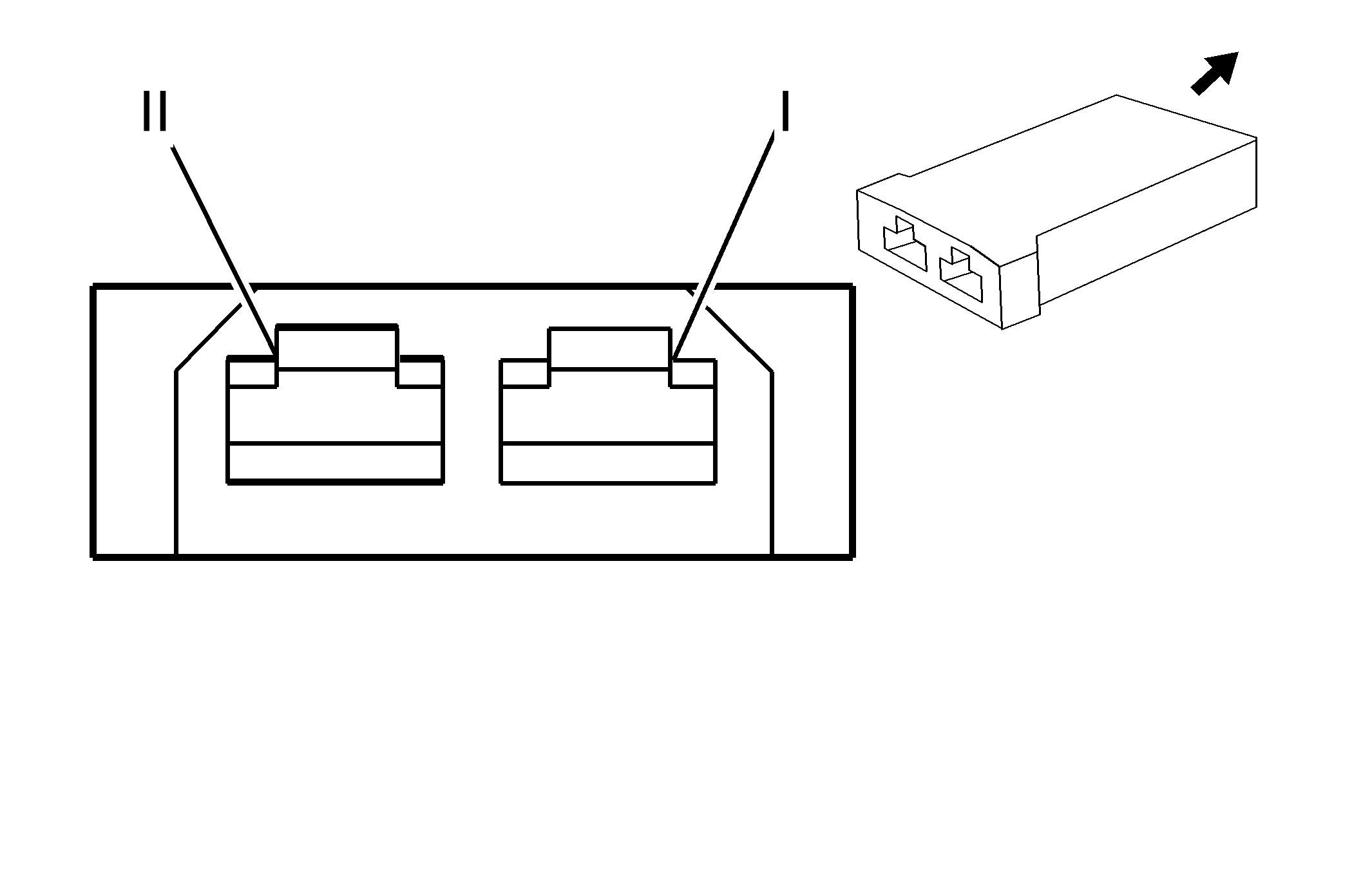

GM1871119Courtesy of
Connector Part Information
  • Harness Type: Left Headlamp
  • OEM Connector: 0-925014-1-2W
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F 2.8 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 0-925014-1-2W
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Headlamp - Left High Beam Solenoid (Z88 with TVD)

Pin Wire Circuit Function
I 1.5 BK - Ground
II 1.5 WH - Left Headlamp High Beam Voltage
