Headlamp - Left High Beam Solenoid (W49)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: XLP-02V
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F XL Series (WH)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - XLP-02V
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

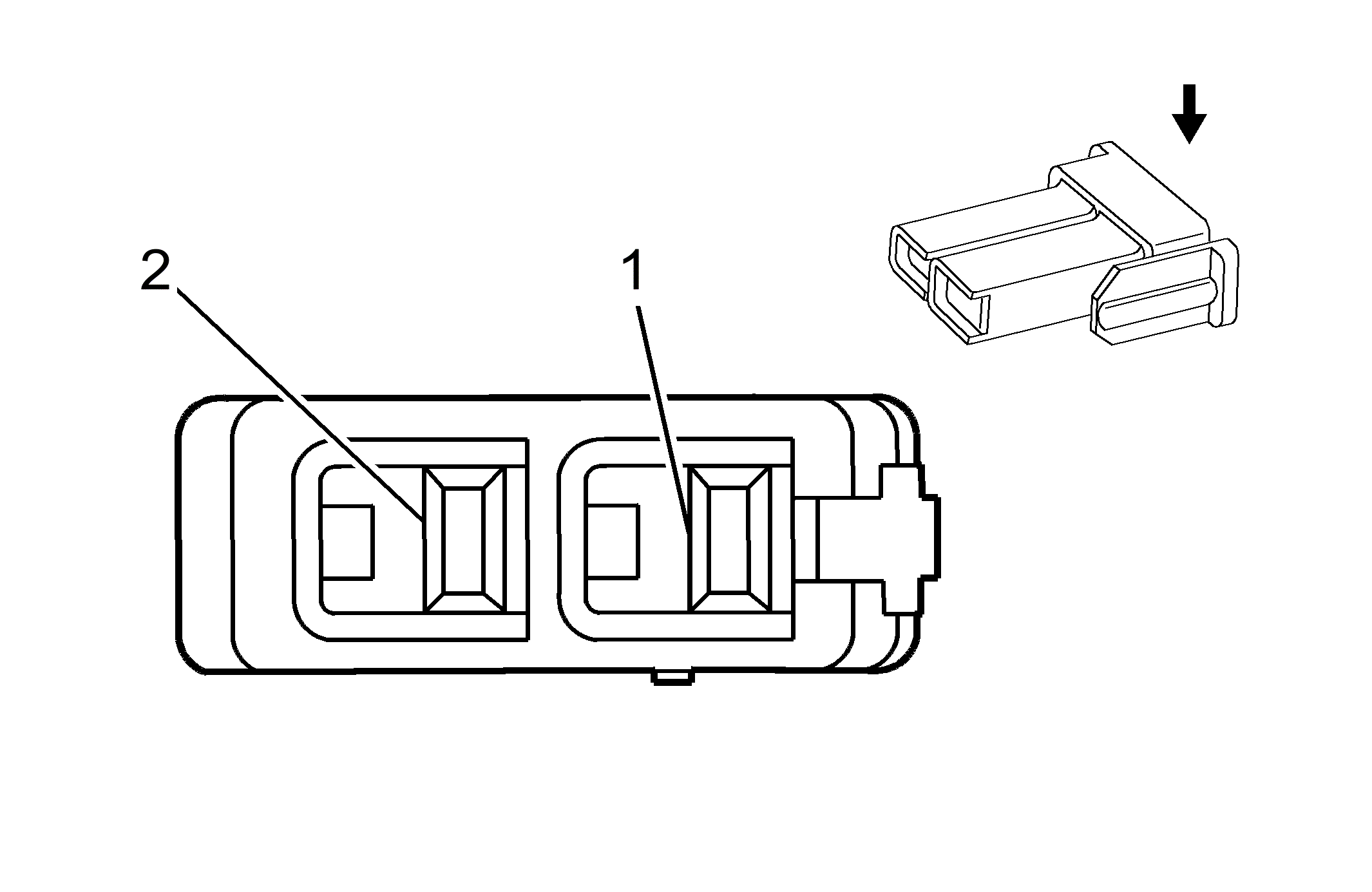

Headlamp - Left High Beam Solenoid (W49)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BK |
- |
Ground |
| 2 |
0.35 GY |
- |
Left Headlamp High Beam Voltage |
