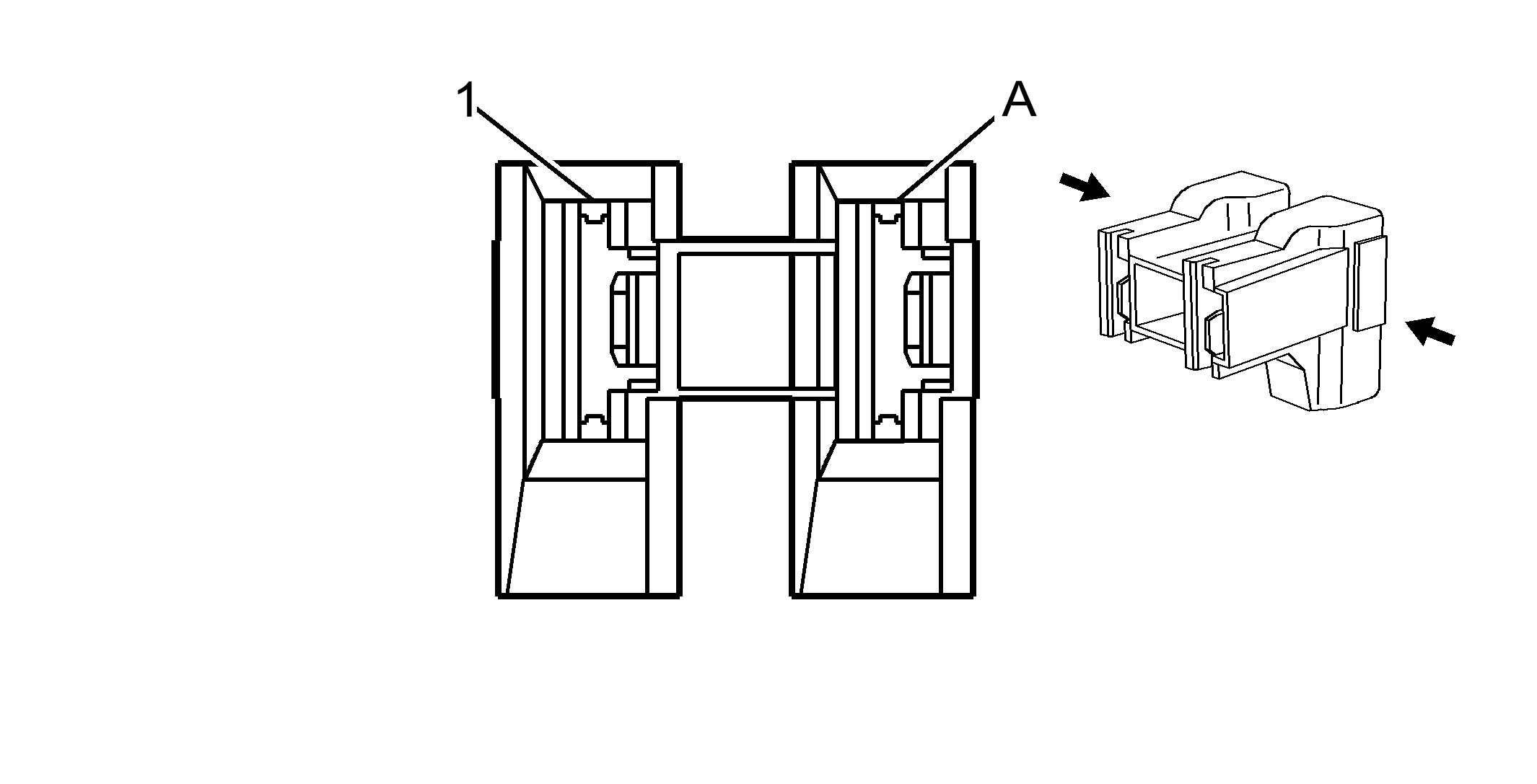

Headlamp - Left High Beam (Z88 without TVD)

GM1884163Courtesy of
Connector Part Information
  • Harness Type: Left Headlamp
  • OEM Connector: 1544352-1
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F 2-Position Receptacle Housing (BK)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 1544352-1
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Headlamp - Left High Beam (Z88 without TVD)

Pin Wire Circuit Function
1 1 L-GN - Right Headlamp High Beam Voltage
A 1 BK - Ground
