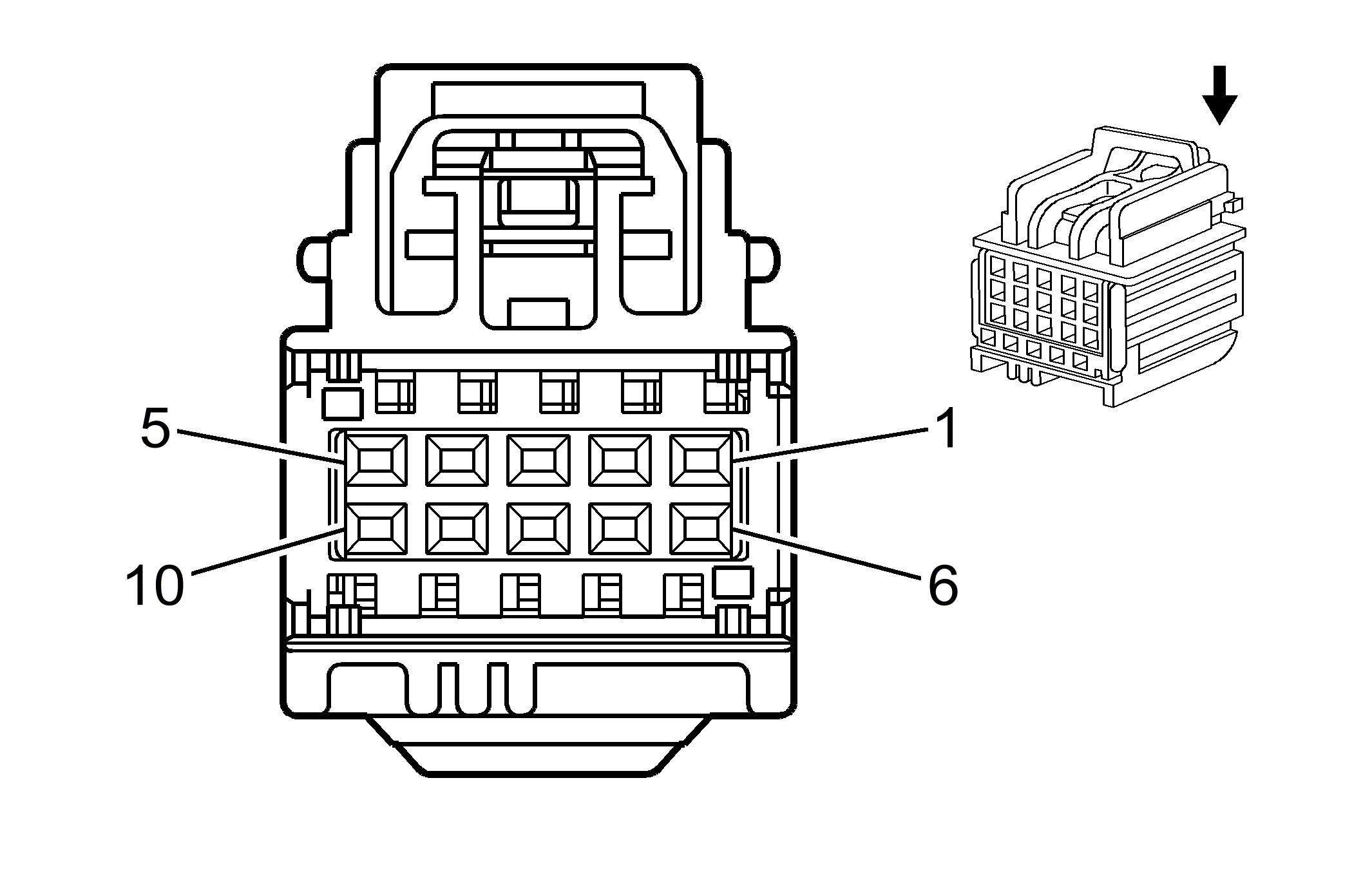

Door Lock/Window Switch - Driver X7 (AXE)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Door Trim Panel
- OEM Connector: 7283-9045
- Service Connector: 15127040
- Description: 10-Way F 0.64 Series (WH)
|
Terminal Part Information
- Terminated Lead: 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
Door Lock/Window Switch - Driver X7 (AXE)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 YE |
6802 |
Left Extend/Fold Mirror Motor Extend Control (DNP) |
| 2 |
0.35 L-BU |
6803 |
Passenger Mirror Motor Down Control (DNP) |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 D-GN |
784 |
Driver Mirror Vertical Position Sensor Signal (A45 with DNP or DS3) |
| 5 |
0.35 GY |
786 |
Driver Mirror Horizontal Position Sensor Signal (A45 with DNP or DS3) |
| 6 |
- |
- |
Not Used |
| 7 |
0.35 D-BU |
672 |
5-Volt Reference (A45 with DNP or DS3) |
| 8-9 |
- |
- |
Not Used |
| 10 |
0.35 BN |
673 |
Low Reference (A45 with DNP or DS3) |
