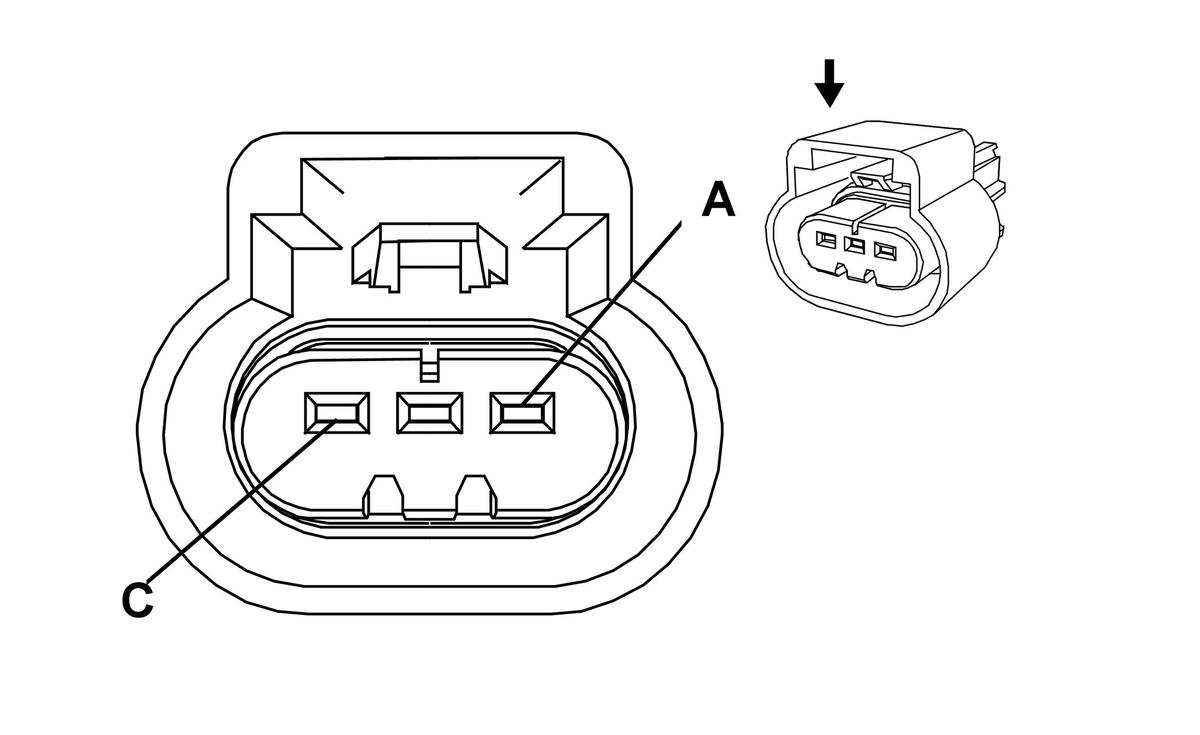

Battery Current Sensor

GM605544Courtesy of
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 19177527
  • Service Connector: 13580871
  • Description: 3-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575464
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 15326030/5
  • Core/Insulation Crimp: E/C
Battery Current Sensor

Pin Wire Circuit Function
A 0.35 PK 5076 Current Sensor Voltage
B 0.35 BN 5077 Low Reference
C 0.35 WH 5075 Current Sensor Signal
