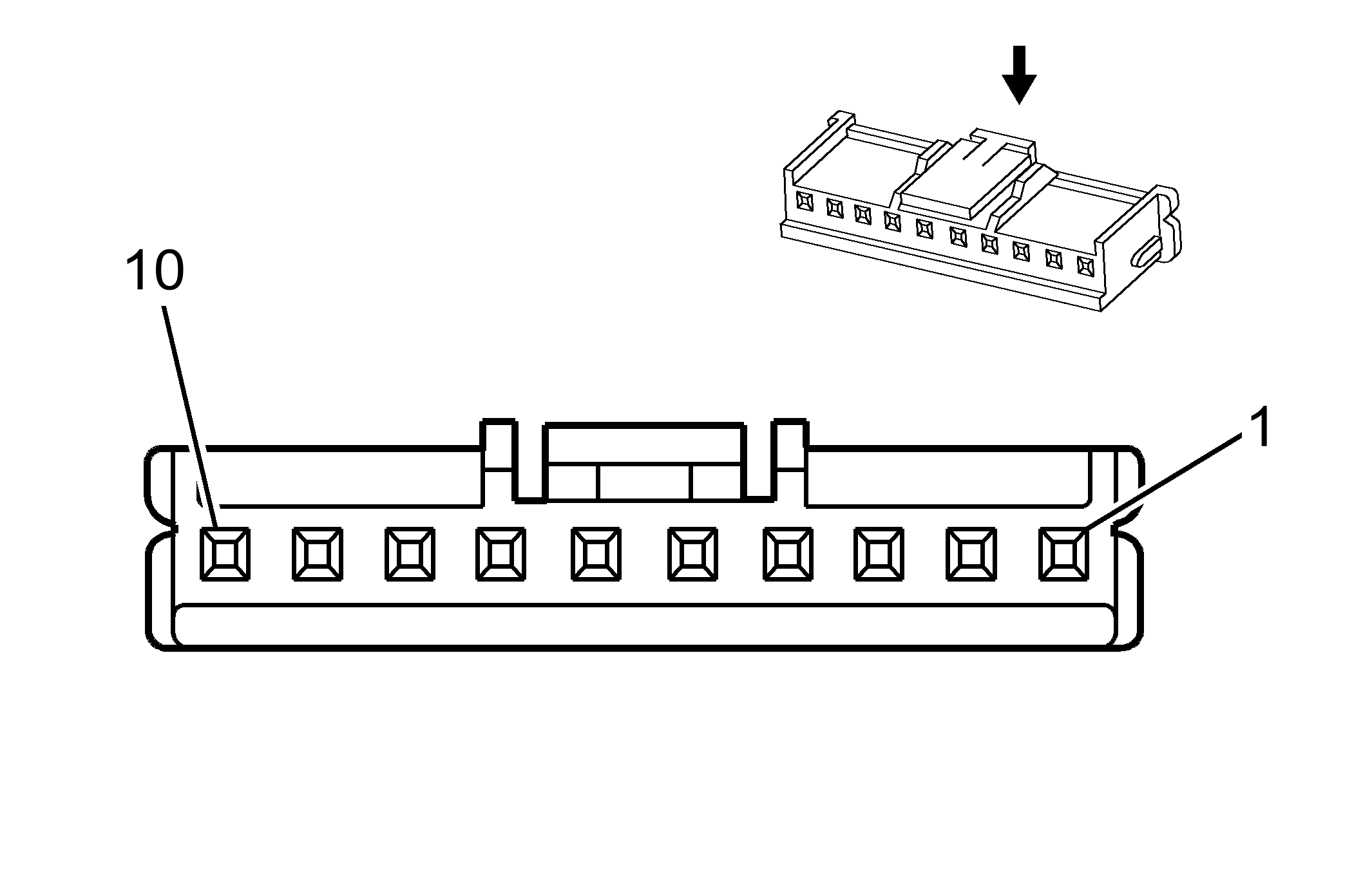

Adaptive Forward Lighting (AFL) Motor - Left (TSH or T26)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: XAP-10V
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F XA Series (WH)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - XAP-10V
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
Adaptive Forward Lighting (AFL) Motor - Left (TSH or T26)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
- |
Left Headlamp High Beam Voltage |
| 2 |
0.35 BK |
- |
Ground |
| 3 |
0.35 RD |
- |
Battery Positive Voltage |
| 4 |
0.35 BK |
- |
Ground |
| 5 |
0.35 OG |
- |
Linear Interconnect Network (LIN) |
| 6-10 |
- |
- |
Not Used |
