Windshield Garnish Molding Replacement - Right Side

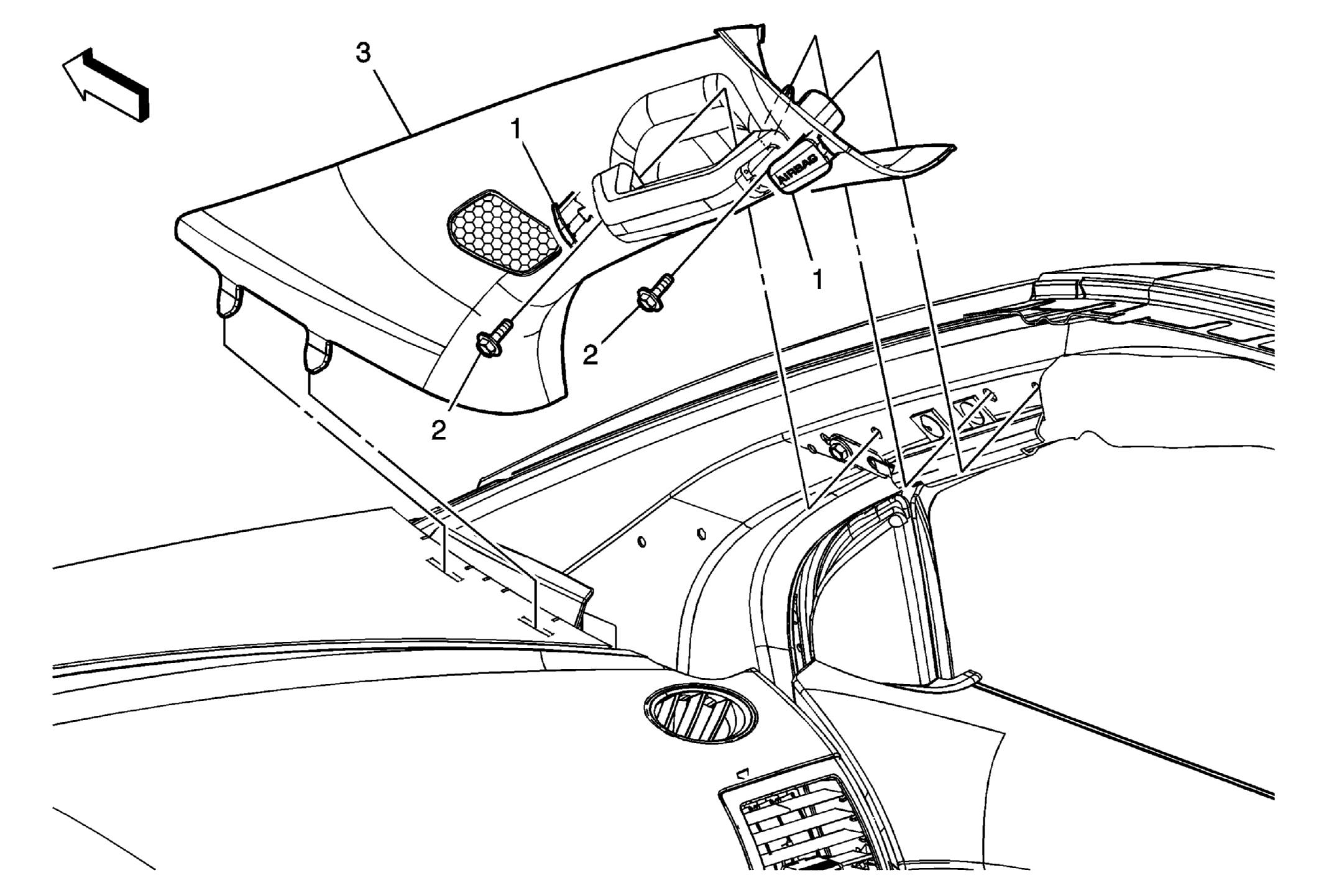

Fig 1: Identifying Windshield Garnish Molding - Right Side

Courtesy of GENERAL MOTORS COMPANY

Windshield Garnish Molding Replacement - Right Side

Callout	Component Name
Preliminary Procedures  Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Side Garnish Molding Bolt Hole Finish Plug (Qty: 2)
2	Windshield Side Garnish Molding Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
3	Windshield Side Garnish Molding Assembly TIP:  Disconnect the electrical connector.
