Windshield Garnish Molding Replacement - Left Side

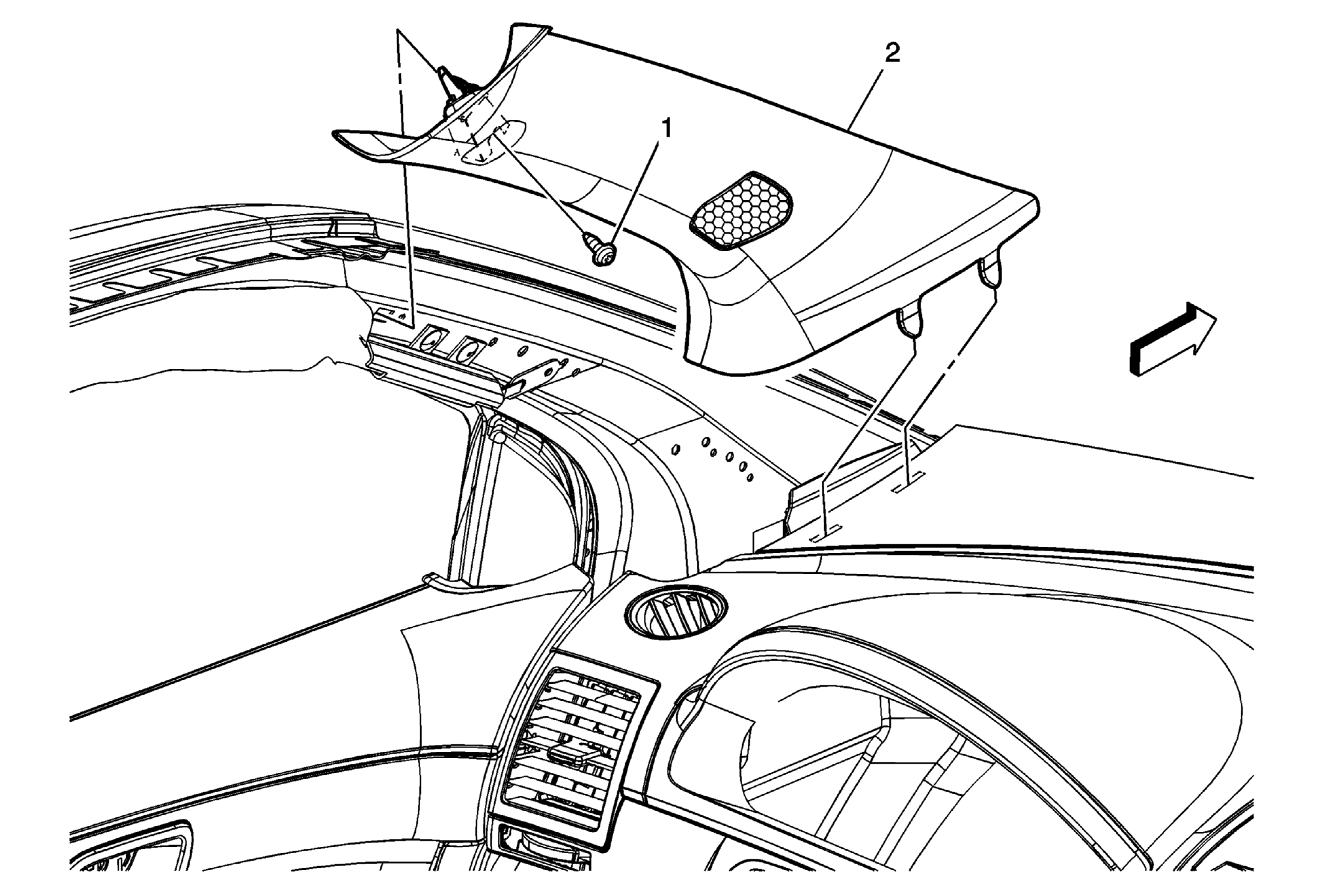

Fig 1: Identifying Windshield Garnish Molding - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Side Garnish Molding Screw CAUTION: Refer to Fastener Caution . TIP: Open the access door to remove the screw. Tighten 2 N.m (18 lb in)
2	Windshield Side Garnish Molding Assembly Procedure Disconnect the electrical connector.
