Front Floor Console Accessory Housing Replacement (Acadia)

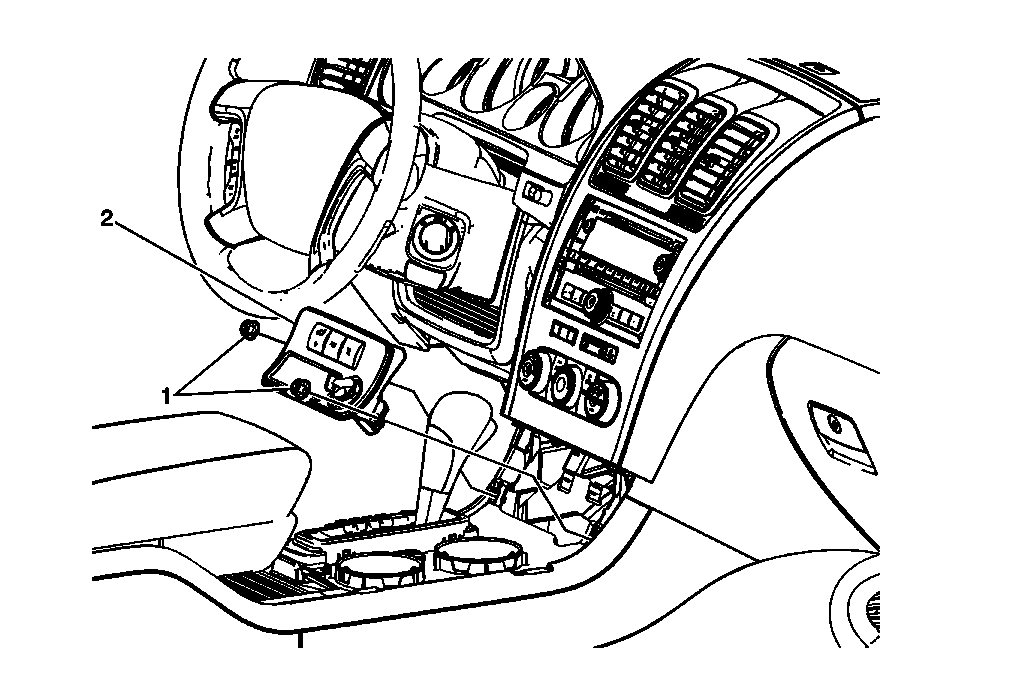

Fig 1: Identifying Front Floor Console Accessory Switch Mount Plate
GM1853526Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Accessory Housing Replacement (Acadia)

Callout Component Name
Preliminary Procedure
Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Acadia) .
1 Front Floor Console Accessory Housing Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Floor Console Accessory Housing Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. When replacing the front floor console accessory switch housing assembly, transfer all necessary components.
