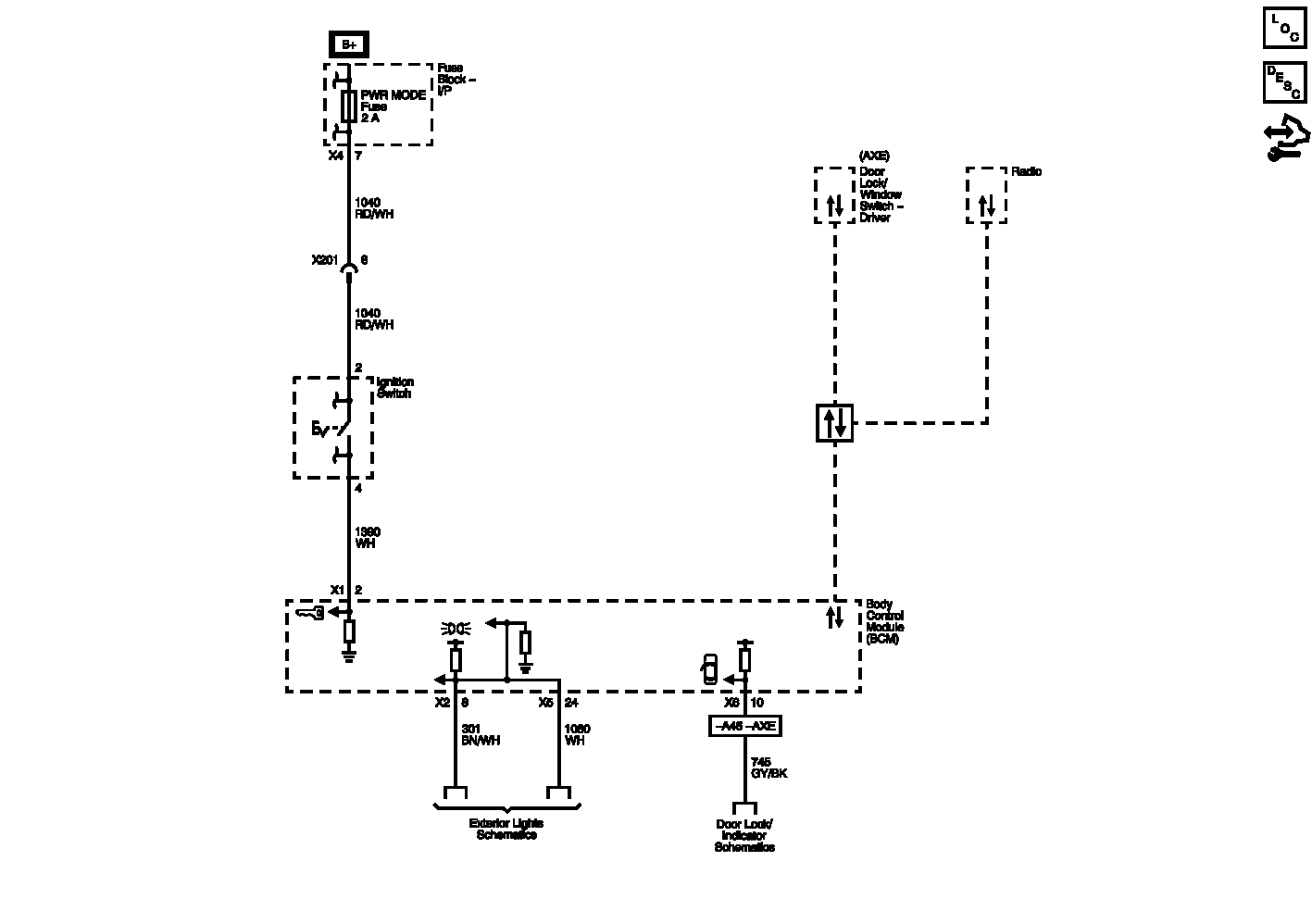

Home >> GMC >> 2012 >> Acadia SLT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Audible Warnings Wiring Schematics >> Audible Warnings
