Seat Belt Retractor Replacement - No. 1 Rear

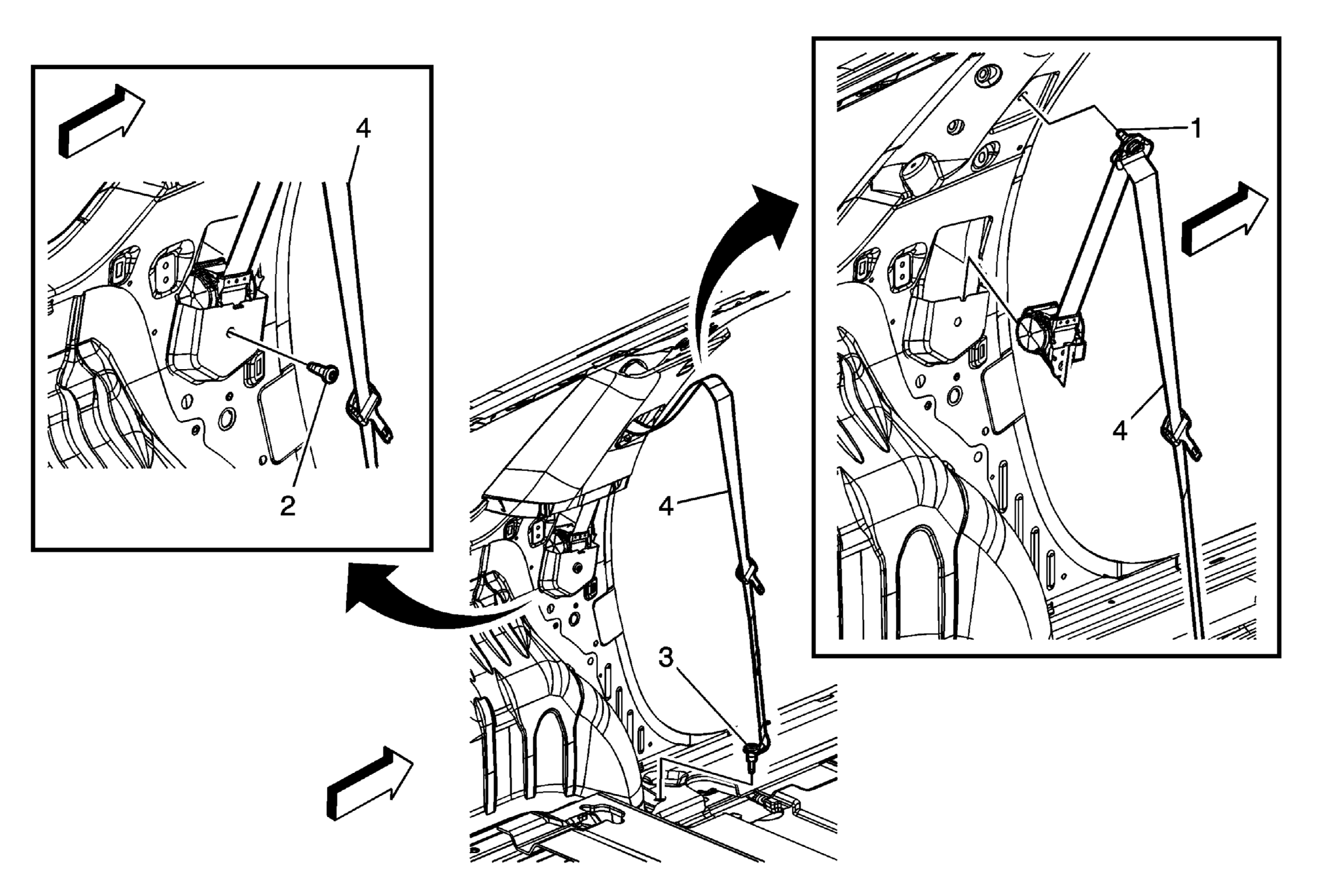

Fig 1: Identifying Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the body lock pillar upper garnish molding. Refer to Body Lock Pillar Upper Trim Panel Replacement . Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Acadia with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB5) , Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB4) .
1	Rear Seat Shoulder Belt Guide Adjuster Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt Anchor Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Shoulder Belt Retractor Assembly
